Flexo Pose LED 420/520
The future of flexo
At Glunz & Jensen, we are always working on developing new and innovative solutions that provide the reliable, consistent prepress results that you know and trust. Our first flexo LED exposure system, the Flex-Pose LED, is no exception.

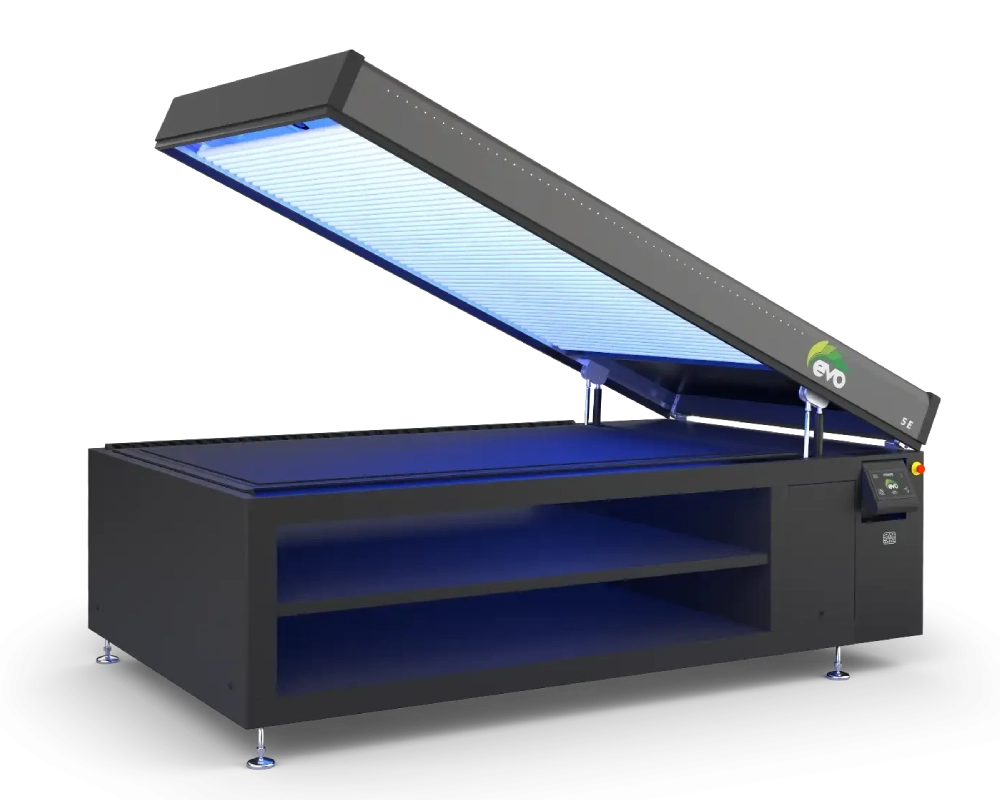

With a compact footprint and cooled bed, this single-sided LED exposure system combines elegant simplicity with groundbreaking LED technology. The result is an affordable, easy to use exposure unit. Our LEDs provide consistent and precise dot reproduction in less time and with less energy usage than a traditional exposure unit.
The Flex-Pose LED is a smart choice – regardless of whether your focus is on saving electricity, space, time or money. Designed to be compact, affordable and reliable, you can expect the same high quality results that you have come to trust from Glunz & Jensen.
Specifications
| MODEL | 420 | 520 |
|---|---|---|
| PERFORMANCE | ||
| Plate size (max) | 1070 x 1530 mm (42 x 60″) | 1320 x 2032 mm (52 x 80″) |
| Plate type | All flexographic and letterpress plate types | All flexographic and letterpress plate types |
| Light source | All high power LED 365Nm | All high power LED 365Nm |
| CONSUMPTION | ||
| Power supply (main machine) | 1Ph+N+PE 230 VAC 13A 50/60Hz | 1Ph+N+PE 230 VAC 13A 50/60Hz |
| Power supply (chiller) | 1Ph+N+PE 230 VAC 13A 50/60Hz | 1Ph+N+PE 230 VAC 13A 50/60Hz |
| Compressed air | Not required | Not required |
| Extraction | Not required | Not required |
| Ethernet | 1x open connection with RJ45 socket | 1x open connection with RJ45 socket |
| GENERAL | ||
| Dimensions (LxWxH) | 2309.5 x 1419 x 1552 mm (91 x 56 x 61″) |
2813.5 x 1628 x 1552 mm (111 x 64 x 61″) |
| Weight (approx.) | 460 kg (1014 lbs) | 545 kg (1202 lbs) |
| Approvals | Complies with CE and RoHS standards | Complies with CE and RoHS standards |
