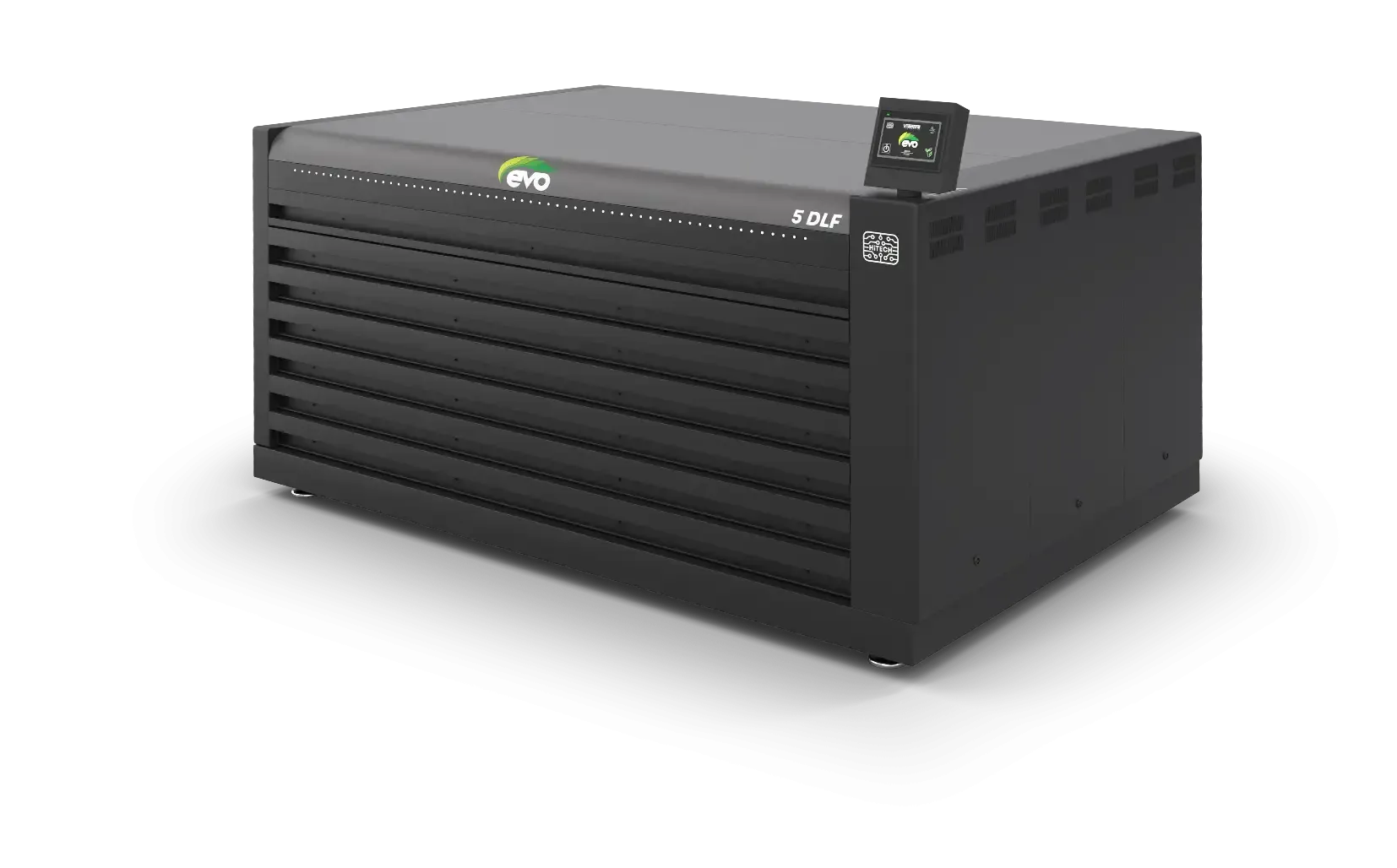

EVO 5 DLF
Evo Common Features
- Remote access (optional)
- Active component visualisation during the process
- Manual function to run the components separately (Service only)
- Plate process parameters memory (up to 24 channels)
- Factory Settings Reset Option
- Programmable switch off
HI-TECH Features
- Larger Control Panel
- New UI: Simple, clear, intuitive
- Smarter and energy-efficient Design
- Secure data & parameters backup and quick recovery option

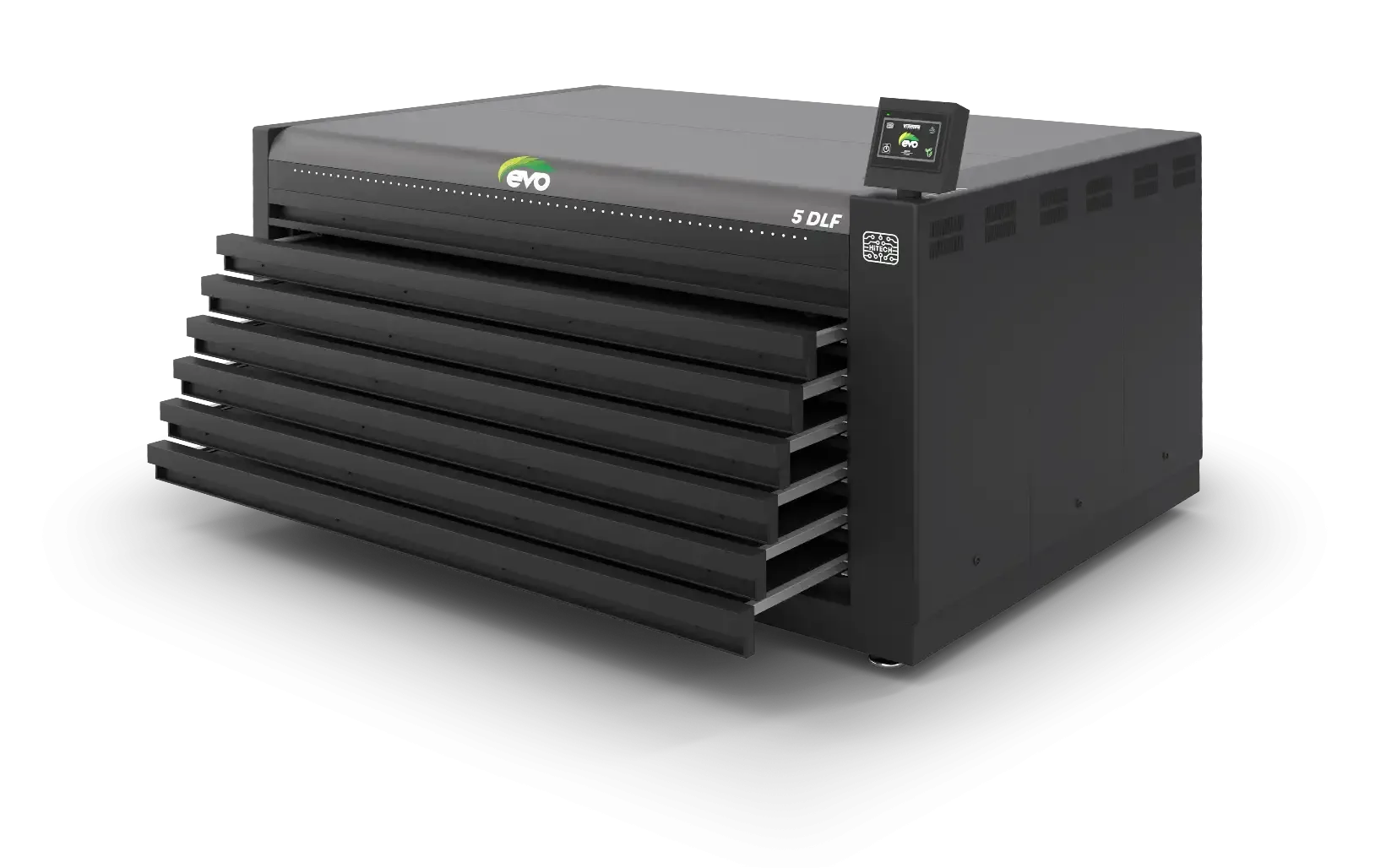

Dryer
- UVA + UVC lamps for post exposure and light finishing
- Programmable operation: simultaneous/separate/sequential
- Independent timers for UVA and UVC
- Air flow cooling system
- Automatic plate cooling with programmable time
- Fiber optics for lamp failure detection
- integrated exhaust system

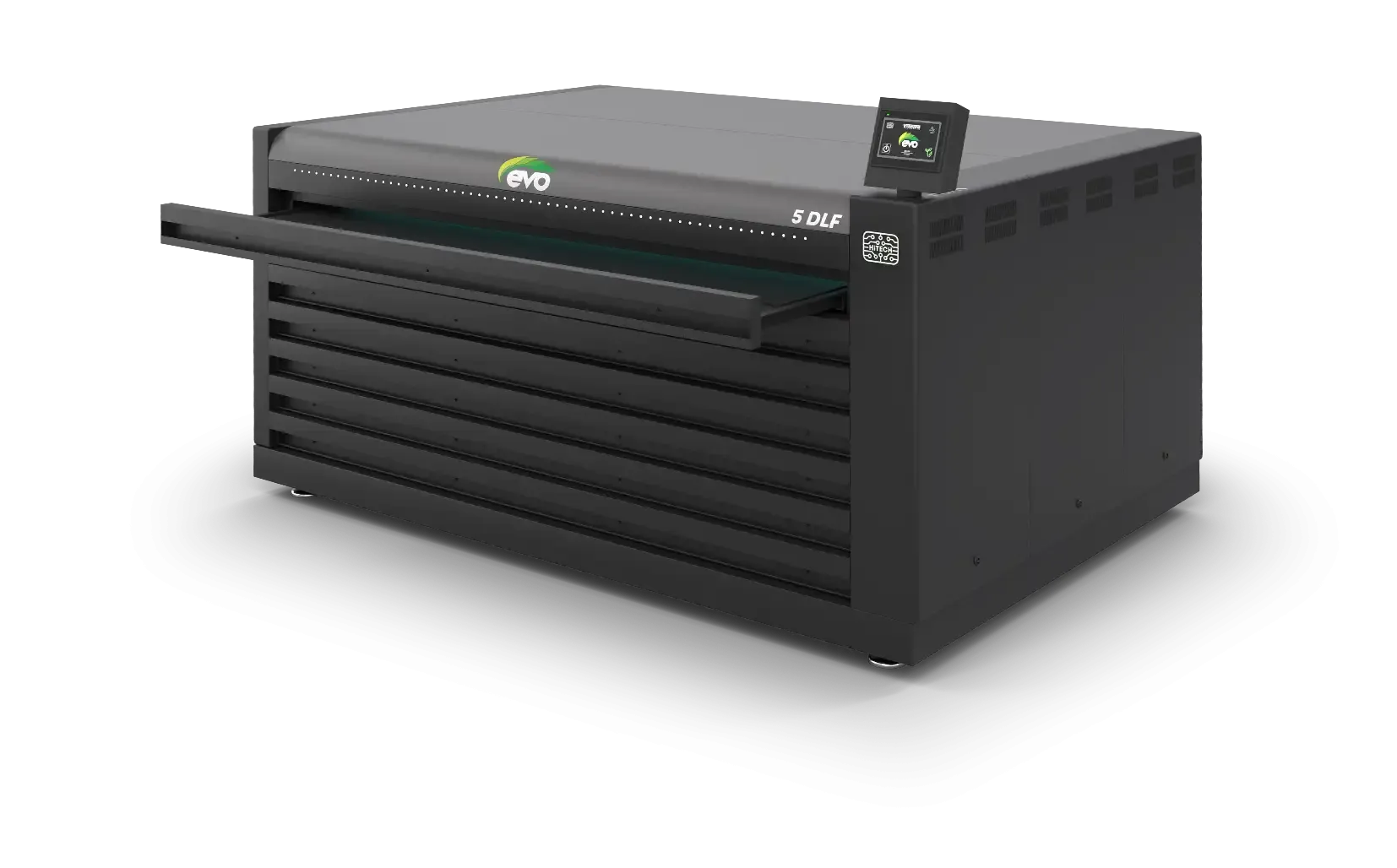

Light-Finisher
- UVA + UVC lamps for post exposure and light finishing
- Programmable operation: simultaneous/separate/sequential
- Independent timers for UVA and UVC
- Air flow cooling system
- Automatic plate cooling with programmable time
- Fiber optics for lamp failure detection
- integrated exhaust system
General Features
This PLC controlled, dryer and light-finisher combined unit is specifically designed for high quality digital and conventional photopolymer plates for flexible printing applications (e.g. wide web).
CE Certification
The equipment is designed and manufactured according to the EEC safety and health standards, as specified in the Type Examination Certificate No. MA19-0042548-01 (309) issued by IMQ spa – Via Quintiliano 43 – 20138 Milan ITALY, and on the basis of the verifications carried out according to the essential requirements of the Directive 2006/42/EC, the system respects and is in compliance with all the applicable points.
Solvent
This System is suitable for analogue and digital, polyester backed, solvent-washable photopolymer Flexo plate.
Stress-Accumulation Early-Warning
The system provides Early Alerts when the time to replace an over-stressed part, causing too much risk, has come. This innovative function allows users to intentionally replace parts that are tired, aged, and degraded just before they fail. More than one hundred parts, critical to the uptime of the system, have been identified and data relative to their maximum-lifetime-expectationstored in the software.
Remote Diagnostics
Remote-Monitoring and Remote-Diagnostics (to be purchased separately); The concept of automation symbolises high quality and productivity, so ensuring you experience minimal downtime, for Vianord is essential. For that reason, this EVO system may be fitted with an Industrial VPN Gateway with dedicated hardware designed to offer Vianord Certified Engineers remote access, across the Internet. This innovative system will help you keep uptime high, maintenance costs low, and extend the system’s useful life.
System Dimensions (net)
245 x 180 x 131 cm
96.5 x 70.8 x 51.6 inch
System Weight (net)
1040Kg (2292lb)
Packing Dimensions
Light Packing on Pallets is preferred and recommended when the system requires a full truckload and is shipped just within Europe. Dimensions: 265 x 187 x 160 cm (104 x 73.6 x 63.0”)
Industrial Wooden Crates are favoured if the system must withstand multiple transhipments during transport and is mandatory when shipped outside the continent. Dimensions: 278 x 195 x 193 cm (109 x 76.8 x 76.0”)
The dimensions mentioned above are for reference only; packaging dimensions may vary depending on the packing company hired for the job.
Packing Weight
Light Packing on Pallets: 1200kg (2645Ib)
Industrial Wooden Crates: 1350Kg (2976Ib)
The weights mentioned above are for reference only; packaging weight may vary depending on the packing company hired for the job.
Mains Electricity
Power Supply (field configurable)
360 / 440 Volt – 50 / 60 Hz – 3Ph / N / PE – 207 / 243 Volt – 50 / 60 Hz – 3Ph / PE
Current (nominal load)
15 A (360/440 Volt configuration) – 26 A (207/243 Volt configuration)
Power Rating (nominal)
9 Kw
Connecting Wires
5 x 4 mm2 (360/440 Volt configuration) – 4 x 6 mm2 (207/243 Volt configuration)
Grounding
< 0.1 Ω
Exhaust
The unit is equipped with a well-designed exhaust system that collect and conveys vapours and fumes from the different sections the machine and discharge them as quickly and silently as possible. The blower in the systems has sufficient power to vent the entire equipment when the tube supplied is connected directly to a vent hoods in the external wall or on the roof.
Light Finisher
Duct connection (V19): Ø 140 mm (5.5”)
Airflow: 400-600 m3/h
Duct connection (V20): Ø 140 mm (5.5”)
Airflow: 400-600 m3/h
Dryer
Duct connection: Ø 80 mm (3.15”)
Airflow: 50-80 m3/h
Working Environment
The system should be installed in a clean, constant-temperature and constant-humidity pre-printing environment with a temperature between 18 and 26°C (64.4 and 78.8°F) and a non-condensing relative humidity in the range of 40 to 60%. To maintain such environmental standards an efficient heating/cooling and ventilating system may be required.
System Colour
Vianord offers all equipment in standard powder coating Vianord Black.
In addition, Vianord offers numerous ways you can personalize your system. In fact, Vianord offers the best customization options in the industry! This allows you to showcase your brand and company’s spirit in ways other companies can’t offer. You can choose your personal colour and have your logo, company name, or slogan pop.
| Dimensions (L-W-H) | 1670 x 2450 x 1170 mm 65.7 x 96.5 x 49.6 inches |
| Power Supply | 400V 3PH/N/PE 50/60Hz 9.5kW 15A 230V 3PH/PE 50/60Hz 9.5kW 26A |
| Plate Thickness | Up to 7 mm / 0.276 inch |
| Packaging Dimensions | 2700 x 1910 x 1800 mm | 1410 Kg |
| Weight | 1040 kg | 2292 pounds |
| Maximum Plate Size | 132 x 203 cm | 52 x 80 inches |
| Exhaust | 1 x 80 mm Ø - 100 m³/h 2 x 140 mm Ø - 600 m³/h |
| Remote Monitoring | Optional |
Product Brochure
