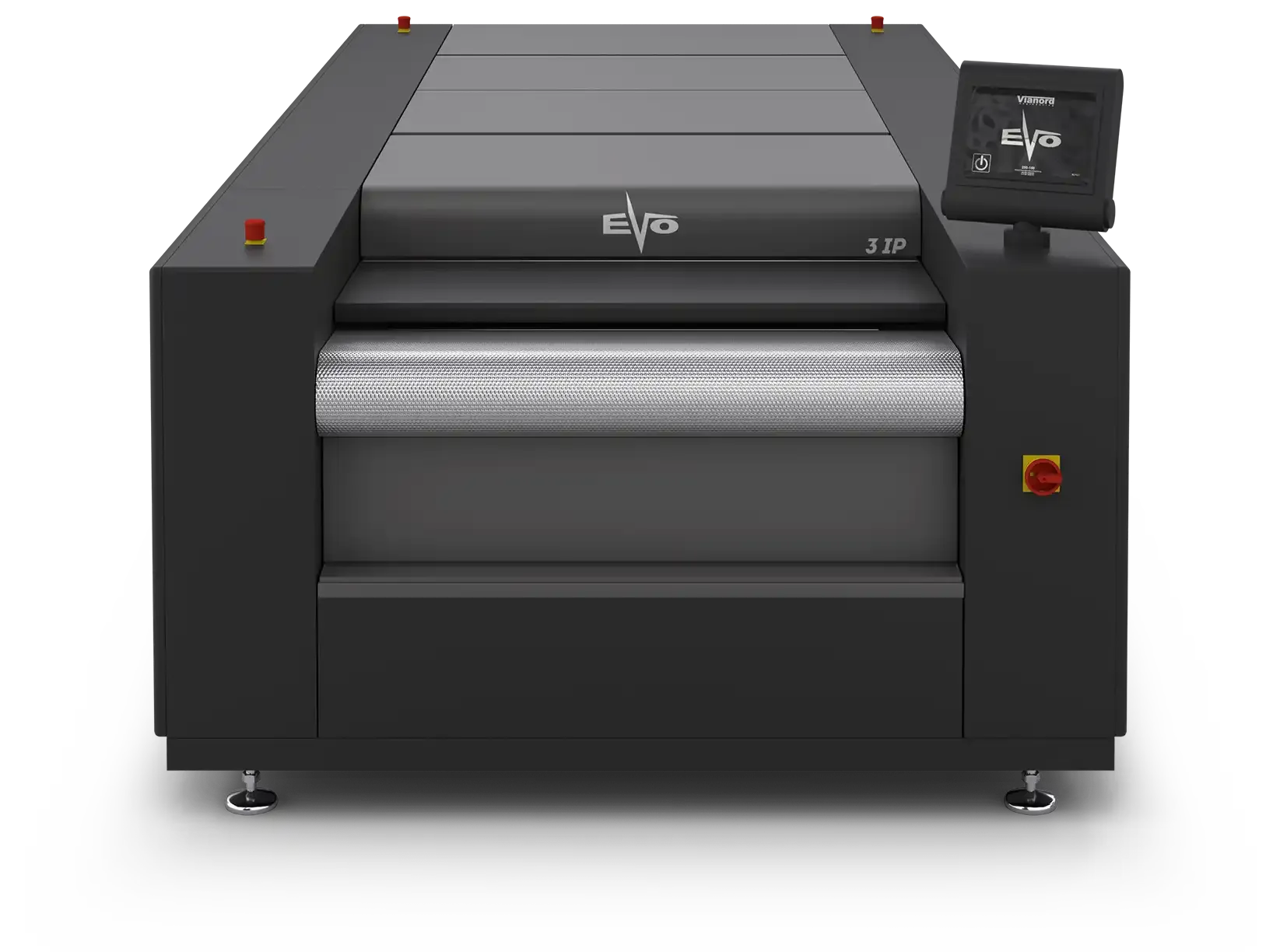

EVO 3 IP
The EVO 3 IP system can be used as core module of an Easy to Plate™ system EVO 3 IPD or EVO 3 IPI.
Engineered for precise digital plate processing, The IP operates in Incremental mode only. Its advanced washout system features a pre‐wash section, with dedicated black layer tank. In Incremental mode plates move through the unit at a constant speed, allowing continuous processing of plates with the same thickness. When switching to a different thickness, the unit must complete the current plate before processing a next. Designed for consistency and efficiency, the processor serves as base unit for Easy to Plate™ Modular Automatic system. For plates up to 92 x 190 cm (36 x 48 inches)
Encumbrance
The minimum distance from should be of 1.5 mt (59”)in front and at the rear and 1 mt (40”) to the sides.
The respect of the minimum distance from the walls is critical to allow sufficient space to the users and the engineers to be able to have access to the system in case of maintenance and repairs.
Evo Common Features
- Remote access (optional)
- Active component visualisation during the process
- Manual function to run the components separately (Service only)
- Plate process parameters memory (up to 24 channels)
- Programmable warm up / switch off

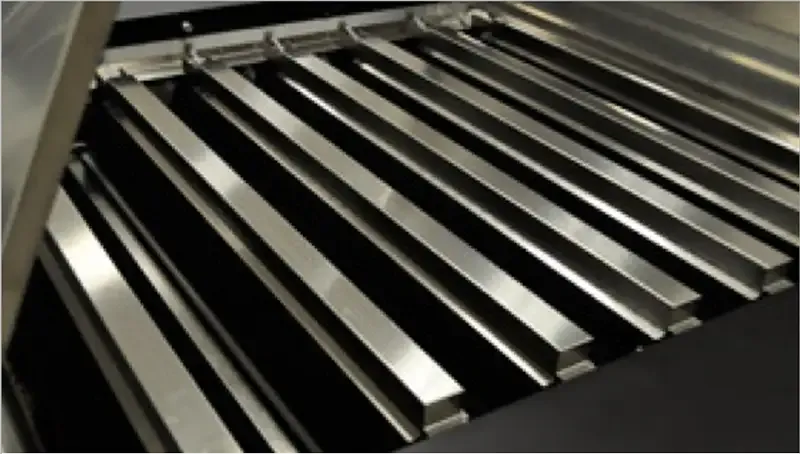

Washout Section
- Separate pre-wash to prevent solvent contamination with LAMS layer
- 2 pre-wash & 8 washout brushes, dedicated cleaning, wiping, and back cleaning brushes
- Oscillating and rotating movements
- 3D Brush Motion, smooth start and reduced vibrations
- Automatic brush oscillation realignment
- Precise solid content analysis
- Automatic solvent replenishment with programmable fresh solvent control
- Adjustable Fresh solvent flow regulation
- Constant preset solvent temperature
- Upgraded cleaning and wiping system
- Integrated exhaust system
- Extended plate handling support for easy removal
- Improved pin bar drop tray to minimize solvent drips
Included with equipment

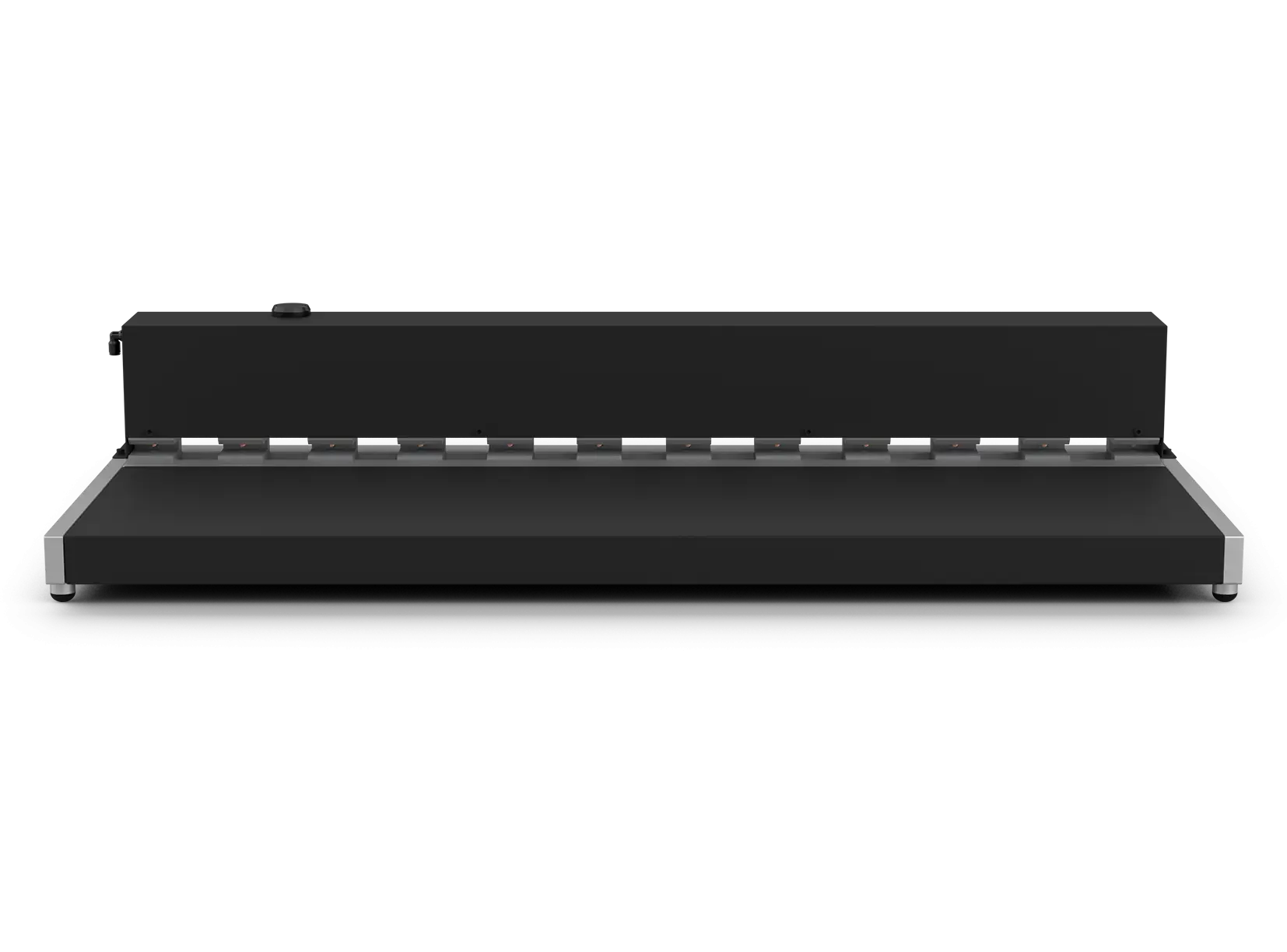

External manual punch
General Features
This PLC controlled, incremental processor is specifically designed for high quality digital and conventional photopolymer solvent-washable plates.
CE Certification
The equipment is designed and manufactured according to the EEC safety and health standards, as specified in the Type Examination Certificate No. MA19-0042548-01 (310) issued by IMQ spa – Via Quintiliano 43 – 20138 Milan ITALY, and on the basis of the verifications carried out according to the essential requirements of the Directive 2006/42/EC, the system respects and is in compliance with all the applicable points
Modular
This unit can be used as core module to a fully automate Easy to Plate™ system.
One of the most important feature of the Easy to Plate™ is the modularity concept, in other words, each unit is an independent piece of equipment buyable separately with the possibility of being upgraded and attached to one other to compose an all-in-one automatic unit. This gives you two choices: buy the whole automatic line at once or amortize the investment and buy the different units over a longer time frame.
Solvent
This System is suitable for analogue and digital, polyester backed, solvent-washable photopolymer Flexo plate.
It is designed to work in a standard “drum-to-drum” configuration where fresh solvent is supplied to the washout unit from a drum and the saturated dirty solvent is pumped from the unit to a recovery drum. It has been tested with conventional alternative solvents, with flashpoint above 62°C (144°F). The system’s installation kit includes two Ø 16 mm – 5 mt solvent hoses with fittings, one level switch for the fresh solvent drum and another for the used solvent drum. Please note that if you intend to use your this system with permanently installed tanks, special level switches may be required.
Stress-Accumulation
Early-Warning
The system provides Early Alerts when the time to replace an over-stressed part, causing too much risk, has come. This innovative function allows users to intentionally replace parts that are tired, aged, and degraded just before they fail. More than one hundred parts, critical to the uptime of the system, have been identified and data relative to their maximum-lifetime-expectationstored in the software.
Remote Diagnostics
Remote-Monitoring and Remote-Diagnostics (to be purchased separately); The concept of automation symbolises high quality and productivity, so ensuring you experience minimal downtime, for Vianord is essential. For that reason, this EVO system may be fitted with an Industrial VPN Gateway with dedicated hardware designed to offer Vianord Certified Engineers remote access, across the Intern et. This innovative system will help you keep uptime high, maintenance costs low, and extend the system’s useful life.
System Dimensions
(net)
373 x 179.5 x 124.5 cm
(146.8 x 70.7 x 49”)
System Weight (net)
1030 Kg (2271 lb)
Packing Dimensions
Light Packing on Pallets is preferred and recommended when the system requires a full truckload and is shipped just within Europe. Dimensions: 380 X 200 X 128cm (149.6 x 78.7 x 50.4”)
Industrial Wooden Crates are favoured if the system must withstand multiple transhipments during transport and is mandatory when shipped outside the continent. Dimensions: 383 X 200 X 138cm (150.8 x 78.7 x 54.3”)
The dimensions mentioned above are for reference only; packaging dimensions may vary depending on the packing company hired for the job.
Packing Weight
Light Packing on Pallets: 1275Kg (2811Ib)
Industrial Wooden Crates: 1030 Kg (2271 Ib)
The weights mentioned above are for reference only; packaging weight may vary depending on the packing company hired for the job.
Mains Electricity
Power Supply (field configurable)
360 / 440 Volt – 50 / 60 Hz – 3Ph / N / PE – 207 / 243 Volt – 50 / 60 Hz – 3Ph / PE
Current (nominal load)
10 A (360/440 Volt configuration) – 18 A (207/243 Volt configuration)
Power Rating (nominal)
6.5 Kw
Connecting Wires
5 x 4 mm2 (360/440 Volt configuration) – 4 x 6 mm2 (207/243 Volt configuration)
Grounding
< 0.1 Ω
Compressed Air Supply
To perform to the best of its possibilities, the system requires a continuous and stable supply of compressed air at a pressure of at least 7 bar (101.5 psi) and not more than 10 bar (145 psi), with pressure dew point 3°C and max. residual intake oil content of < 0.01 mg/m3. Consider also an average consumption of 70 l/hr. The system installation kit includes a 5-meter – Ø 6mm air connecting pipe for push-in fitting.
Exhaust
The unit is equipped with a well-designed exhaust system that collect and conveys vapours and fumes from the different sections the machine and discharge them as quickly and silently as possible. The blower in the systems has sufficient power to vent the entire equipment when the tube supplied is connected directly to a vent hoods in the external wall or on the roof.
Duct connection: Ø 140 mm (5.5”) Airflow: 600-650 m3/h
Working Environment
The system should be installed in a clean, constant-temperature and constant-humidity pre-printing environment with a temperature between 18 and 26°C (64.4 and 78.8°F) and a non-condensing relative humidity in the range of 40 to 60%. To maintain such environmental standards an efficient heating/cooling and ventilating system may be required.
| Dimensions (L × W × H) | 3730 × 1790 × 960 (panel 285) mm 146.8 × 70.5 × 37.8 (panel 11.2) inches |
| Power Supply | 400V 3PH/N/PE 50/60Hz 6.5kW 10A 230V 3PH/PE 50/60Hz 6.5kW 18A |
| Plate Thickness | Up to 7 mm / 0.276 inch |
| Solvent | Min solvent volume for operation: 80 lts Max solvent volume for operation: 110 lts Max tank volume: 120 lts Solvent in & out pipes: 2 × 16 mm Ø |
| Packaging Dimensions | 3820 × 1990 × 1370 mm | 1425 Kg |
| Weight | 1030 kg | 2271 pounds |
| Maximum Plate Size | 92 × 120 cm | 36 × 48 inches |
| Compressed Air Supply | Minimum 7 bar |
| Exhaust | 1 × 140 mm Ø - 600 m³/h |
| Remote Monitoring | Optional |
