Features & Benefits

Precision production color in a small footprint

Reliable workflow technology meets robust color and finishing options, and with a compact footprint, in the RICOH Pro C5400S/C5410S. Superb quality and consistent performance make it ideal for in-plants, marketing agencies, commercial printers, franchise/pay-for-print environments, and general office environments. Presentations will come to life with stunning color as you impress your customers with professional quality finishing.

Expand your creativity with flexible media handling

Produce more applications with extended media capabilities. Create vivid posters, business cards, or personalized direct mail all on one digital press. Print on a variety of substrates including bond, coated, textured, carbonless, or synthetic stocks for limitless creative opportunities.

Superior quality for impressive outputs

Eco-conscious toner paired with unmatched image technology will produce beautiful, high-value production print quality every time. Experience crisp lines, vivid color and an attention to detail with the 2400 x 4800 dpi laser resolution. Clients can rely on consistent, high-quality output from the first print to the last.

Maximize uptime. Maximize results

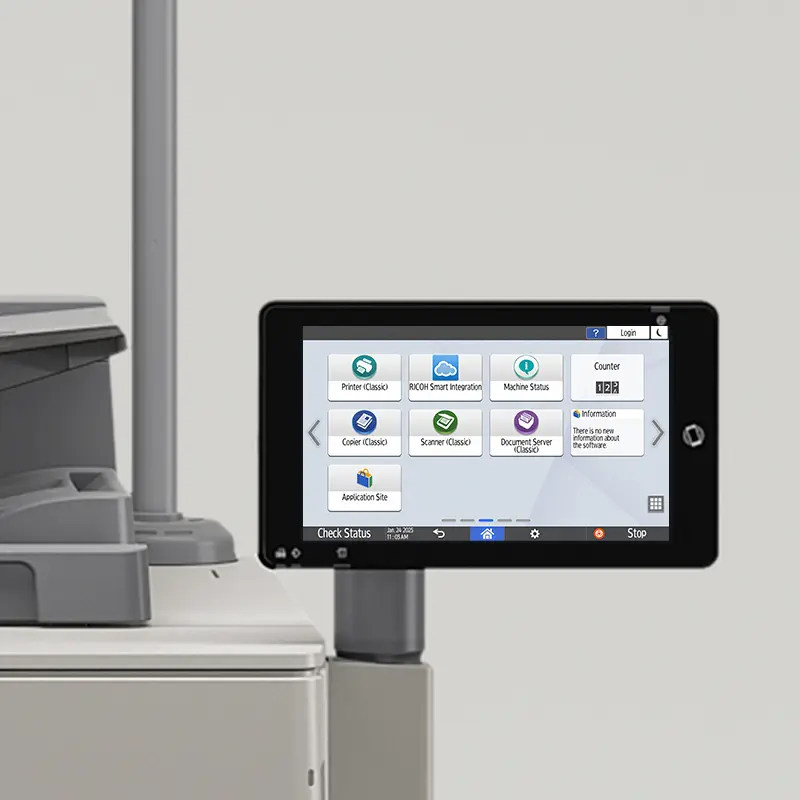

Complete tasks quickly and easily with the user-friendly 10.1” Android™-based Smart Operation Panel (SOP). Get up-and-running faster with the shorter 30-second standard warm-up time so you can get your ideas flowing before you finish your first cup of coffee. Create professional-grade output without compromising on precious office space.

Expanded finishing for a faster ROI

Automate and streamline finishing with inline options for saddle stitching, square folding, stacking, punching, multi-folding, and more. The RICOH Pro C5400S Series helps you eliminate bottlenecks in your workflow and reduces the need for manual intervention, enhancing efficiency and accelerating time to market.

Applications

Extensive media handling, fully configurable for ease

No matter the application, the Pro C5400S/C5410S can handle a wide variety of media types, and you can create paper profiles for those you use most. Experience incredible media flexibility for coated, carbonless, specialty and synthetics stocks up to 360 gsm. Uncoated stock handling up to 13” x 51”. Precise front-to-back and page-to-page registration pairs with standard auto-duplexing up to 13” x 19.2” for intricate applications such as business cards.

New and expanded finishing options

Choose from a more expansive selection of finishing options:

The optional envelope fusing unit enhances productivity and output quality when printing on envelopes.
Staple-less binding allows your team to bind up to 16 pages as an environmentally-friendly way to present documents.
The Plockmatic® 435e/450e series booklet maker produces saddle-stitched booklets in portrait and landscape modes on standard 8.5” x 11” paper.
The GBC® StreamPunch Plus supports a variety of binding styles and applications by producing a wide range of punch patterns, creasing or perforated documents.

Make personalized communications simple with variable data printing

Personalized communications increase response rates and engagement with your brand. With variable data printing, you can offer personalization of everything from invoices and statements, to business cards, direct mail and coupons.

A team of experts by your side

Whether you need help configuring your device or you’re looking for a partner to help optimize your print workflow, our team of experts can help. Ricoh offers onsite service support when you need it and technical support over the phone 8am to 8pm ET. Consider Ricoh consulting services and training to help your team improve print workflows and explore print process best practices.

Quality

VCSEL image technology delivers vivid graphics & sharp text

The Pro C5400S/C5410S is equipped with Ricoh’s Vertical Cavity Surface Emitting Laser (VCSEL) image technology that ensures the highest pixel density for vivid images and crisp text, time after time. With the 2400 x 4800 dpi laser resolution, you can experience sharp, high-quality images to impress your clients.

Innovative, eco-conscious toner brings color alive

Experience concise color control for vibrant outputs with Ricoh’s proprietary PxP-EQR toner. The Pro C5400S series features PxP-EQR toner, providing closer color control for a vibrancy comparable to offset. This advanced toner ensures uniform adhesion, providing beautiful color distribution, making it the perfect choice for in-plants or commercial printers.

Create stunning images with advanced color management

From short-run jobs to traditional offset and high-quality digital printing, the RICOH Pro C5400S/C5410S delivers consistent, predictable color every time. Intuitive features like active toner density control stabilize image quality while auto color calibration delivers high-quality, consistent color on every page. Easily match brand colors and reproduce logos no matter how bold the color or fine the lines.

Achieve your production goals with expert guidance

From maintaining consistent color to reducing waste, Ricoh experts can help your team identify a color management strategy built around your unique goals. You can also gain insight into your project workflow to identify gaps and opportunities for improvement. Plus, you can secure your G7 Master Printer Qualification to be part of an elite set of highly sought-after vendors with proven skills.

Performance

Boost print production, even in limited space

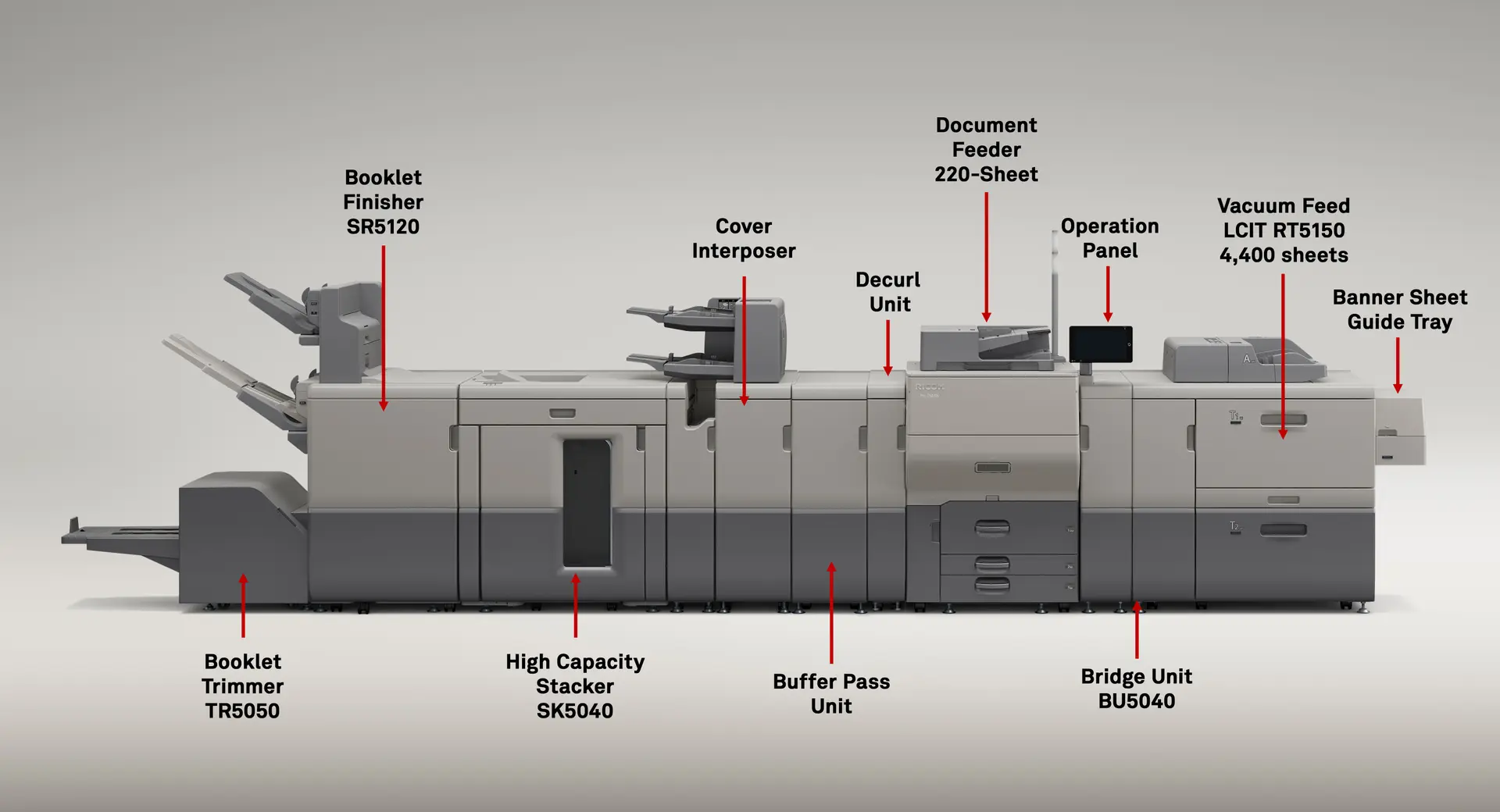

The Pro C5400S/C5410S features a compact footprint and still delivers reliable performance for even the most complex jobs. A short 30-second warm-up time and 8,500-sheet max paper capacity keep things moving. Robust workflow automation tools keep your productivity high with minimal intervention as add-on finishing options allow you to customize your device for your exact needs.

Security features to meet compliance requirements

The Pro C5400S/C5410S comes loaded with robust security features to keep you and your data protected. User authentication and data encryption keep data safe while Data Overwrite Security System (DOSS) and Standard HDD Encryption help safeguard hard-drive data even after system end-of-life. Secured Print keeps confidential information in the right hands, allowing users to print only when at the device.

A controller that powers your workflow

Optimize your print operation with your choice of two Fiery® controllers built on the secured FS-600 platform. The embedded-type Fiery E-28B provides robust job and color management, while the server-based Fiery E-48B provides even more power for a higher level of performance and control over job processing — from make-ready to delivery.

Collaborate with anyone, anywhere

Intuitive user controls and a 10” Smart Operation Panel allow for smooth user operation and minimal uptime. Users can scan up to 300 images per minute with the 220-sheet document feeder. Images can then be saved, shared, or sent directly to teammates with the scan-to-email function, enabling easy collaboration with anyone on your team.

Reimagine sustainable performance in production printing

These printers feature 25% post-consumer recycled plastics and 21% electric furnace steel, reducing environmental impact. The RICOH Pro C5400S/C5410S is both ENERGY STAR® certified and EPEAT Gold rated. The innovative toner both reduces emissions and enhances color accuracy, while features such as the optional staple-less binding help minimize waste and eliminate the need to stock and dispose of staples.

Finishing

Paper Handling

Multi Bypass Tray BY5020

Feeds up to 500 sheets of uncoated paper stocks for expanded system capacity and document output types. Support for stocks up to 13″ x 19.2″ in size and up to 80 lb. Cover (216 gsm) in weight.|Weight: 44 lbs. (20 kg)|W × D × H (inches): 27.2 × 22.1 × 8.3|W × D × H (mm): 691 × 561 × 211

Vacuum Feed Banner Sheet Tray Type S9

This item is for use with the Vacuum Feed LCIT RT5120 to enable the system to run coated and uncoated media up to 13″ x 27.5″. Supports media up to 300 gsm.|Provides 730 sheet paper capacity for oversized prints.|Weight: 20 lbs. (9 kg)|W × D × H (inches): 9.3 × 28.7 × 10|W × D × H (mm): 236 × 729 × 254

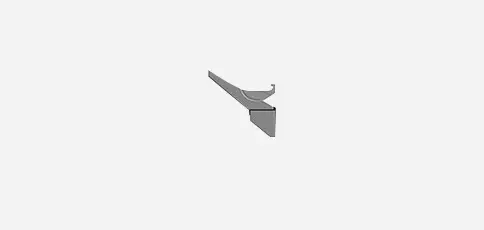

Copy Tray Type M42

The 500-sheet Copy Tray is the system’s most basic exit tray for printed or copied output. Select the Copy Tray if you do not require advanced finishing including stapling, hole punching, folding or booklet making.|When configured with this option, output is delivered face down in a neat stack.|Weight: 4.85 lbs. (2.2 kg)|W × D × H (inches): 13.78 × 20.2 × 7.56|W × D × H (mm): 350 × 513 × 192

Stackers

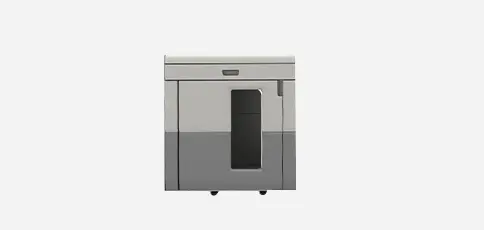

High Capacity Stacker SK5040

For stacking up to 5,000 sheets of paper. Up to two stackers can be configured per engine.

Sheet Finishers

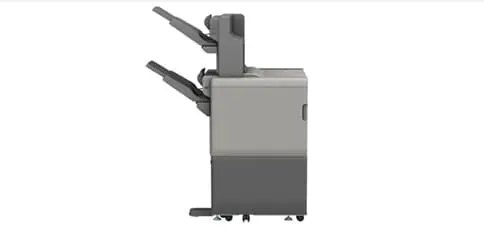

4,500 Sheet Finisher SR5110

The SR5110 offers multi-position staple finishing of up to 100 sheets for 8.5″ x 11″ sized media or 50 sheets for 11″ x 17″ sized media. The unit also offers stacking of up to 4,500 sheets (dual shift tray) with 4 staple options (top, bottom, 2 staples and top-slant). Two and three hole punch is available as an optional accessory.

Booklet Makers

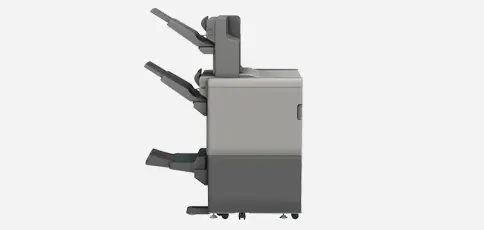

Booklet Finisher SR5120

The SR5120 offers multi-position staple finishing of up to 100 sheets for 8.5″ x 11″ sized media or 50 sheets for 11″ x 17″ sized media. The unit also offers stacking of up to 3,500 sheets (dual shift tray) with 4 staple options (top, bottom, 2 staples and top-slant). Two and three hole punch is available as an optional accessory.

Plockmatic PBM435e Booklet Maker

These production booklet maker accessories enable production of a wide variety of booklet formats, including landscape, in up to a 140-200 page range. A rich standard feature set including face trimming and square back spine formation, and other optional accessories, make this a true production workhouse.

GBC StreamPunch Plus

The GBC StreamPunch Plus produces a wide range of perfectly punched, creased, or perforated documents to support a variety of binding styles and applications – all in one easy step for a fully automated and streamlined workflow.

Cutters/Trimmers

Trimmer Unit TR5050

Trims the “creep” side of a saddle-stitched booklet for professional looking booklets. Trims up to 30 sheets based on 20 lb. Bond, equivalent to an 120-page book.|Weight: 165.3 lbs. (75 kg)|Power Requirements: 120V, 50/60Hz, 15A|W × D × H (inches): 30.7 × 23.3 × 21.9|W × D × H (mm): 780 × 592 × 556

Plockmatic Square Back Trimmer

The Plockmatic Square Back Trimmer adds two key functions – booklet square folding and face trimming for professionally finished documents. It can also process booklets for bleed trimming book by book in an operator assisted process.|Weight: 392 lbs. (178 kg)|Power Requirements: 100-240V 50-60Hz (15A)|W × D × H (inches): 67.9 × 26.1 × 41.9|W × D × H (mm): 1,725 × 663 × 1,064

Plockmatic CT XL

The CT XL Crease Trimmer unit increases or tims the top and bottom edges of each sheet as they pass through the module to create full bleed, creased booklets. Using the 7 inch color User Interface, choose from the nine standard crease patterns or the Custom Crease selection, to crease sheets of up to 1260 mm or 49.6 inches long.

Cover Interposers

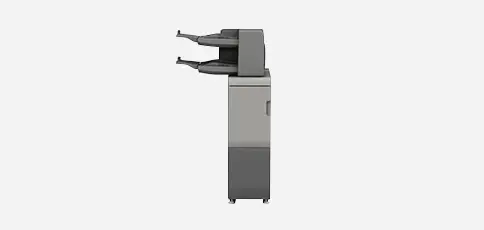

Cover Interposer Tray CI5040

The Cover Interposer Tray allows pre-printed covers and inserts to be easily fed into the finishing workflow from two sources. This option eliminates the need for time-consuming offline manual insertion and reduces the wear and tear on originals.|Supports paper sizes up to 13″ × 19.2″ and media up to 130 lb. Cover (350 gsm).|Weight: 110 lbs. (50 kg)|W × D × H (inches): 13 × 28.7 × 50.8|W × D × H (mm): 330 × 729 × 1,290

Folders

Multi-Folding Unit FD5040

Provides automatic inline document folding with the ability to deliver folded output in four different patterns: Half‑Fold, Letter Fold‑In (Tri‑Fold), Letter Fold-Out (Tri‑Fold) and Z‑Fold. The Multi-Folding Unit is ideal for finished documents such as newsletters, brochures, menus and marketing materials.

Other

RPIP Interface Port Type S3

Enable the inline connectivity of select third party finishing peripherals. This powerful solution greatly enhances your workflow, reduces labor time, and maximizes the value of traditional offline finishing equipment. Connect inline to the following finishing options: CP Bourg Booklet Maker BM-e, CP Bourg Watkiss PowerSquare™ 224, DSF-2000 Sheet Feeder and DBM-350 Booklet Maker

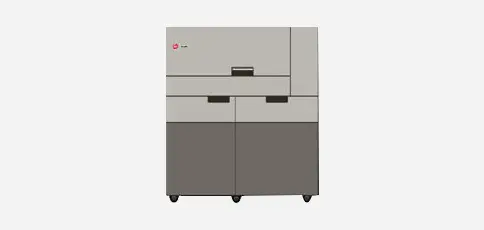

GBC StreamWire

A fully automated inline binding system for creating twin loop wire-bound booklets. StreamWire Spools are available in 3 Colors (Black, White and Silver) and in 5 different sizes.

Specifications

Print/Copy Process	4 drum dry electrostatic transfer system with internal transfer belt
Fusing	Oil-less belt fusing method
Document Feeder Type	220 sheets (81.4gsm)/250 sheets (64-68gsm) ADF with single-pass color Duplex scanning at up to 300 ipm
Control Panel	10.1″ AndroidⓇ-based Smart Operation Panel
Copy Resolution	600 dpi
Print Resolution	VCSEL: 2400 x 4800 dpi Print: 1200 x 4800 dpi Copy: 600dpi (scan), 2400 x 4800 dpi (copy output) Scan: 600dpi/ 1200 dpi for network TWAIN scan Vertical Cavity Surface Emitting Laser
Scan Resolution	600 dpi
Output Speed	Pro C5410S (Letter): 80 ppm (52.3 – 256 gsm) 56 ppm (256.1 – 360 gsm) Pro C5400S (Letter): 65 ppm (52.3 – 256 gsm) 50 ppm (256.1 – 360 gsm)
Paper Capacity	Paper Capacity: Tray 1: 2,500 sheets (1,250 x 2) Trays 2 – 3: 550 x 2 Bypass Tray: 250 sheets Total Std Paper Capacity: 3,850 sheets Total Max Paper Capacity: 8,500 sheets
Paper Size	Tray 1: 8.5″ × 11″ Trays 2 – 3: 3.94″ × 5.5″ to 13″ × 19.2″ Bypass: 3.94″ × 5.5″ to 13″ × 51.18″, Envelopes
Paper Weight	Trays 1 – 3: 14 lb. Bond – 110 lb. Cover (52.3 – 300 gsm) Bypass Tray: 14 lb. Bond – 130 lb. Cover (52.3 – 360 gsm) Auto Duplex: 14 lb. Bond – 130 lb. Cover (52.3 – 360 gsm)
Max Monthly Volume	150K
Power Requirements	208 – 240V, 16A, 60 Hz (dedicated)
Maximum Power Consumption	Less than 3,840 W
Typical Electricity Consumption TEC	Pro C5400s: 5.811kWh/wk Pro C5410s: 7.323kWh/wk
Dimensions W x D x H	31.46″ × 34.65″ × 64.88″ (incl. ADF and Status Light Pole)
Weight	Less than 606.3 lbs. (275 kg)
