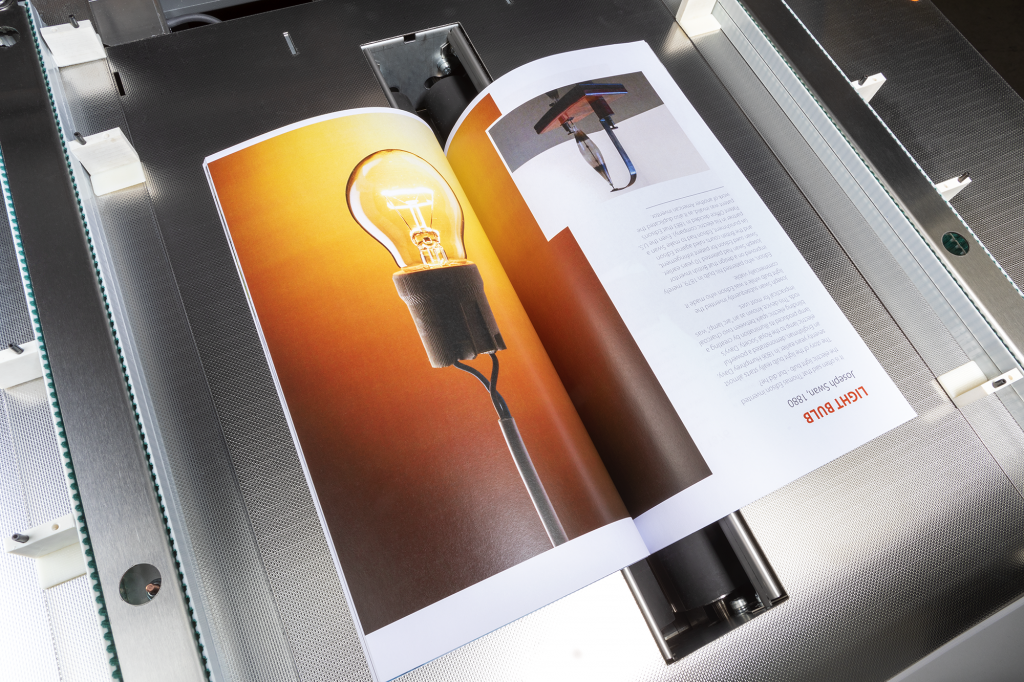

PowerSquare™ 160VF Booklet maker

• Paper Size 160VF – Min: 200 x 200mm / 7.8″ x 7.8″ to Max: 350 x 620mm / 13.7″ x 24.4″
• Paper Size 160 – Min: 140 x 200mm / 5.5″ x 7.8″ to Max: 370 x 620mm / 14.5 / 24.5″
• Stock Range 160VF – 60 – 300gsm / 16lb bond – 82lb cover dependent on paper
• Stock Range 160 – 60 – 400gsm / 16lb bond – 105lb cover dependent on paper
• Book thickness:
• Minimum set thickness – 1 sheet 80gsm / 20lb bond (when folded makes an 4 page leaflet)
• Maximum finished book thickness – 8mm / 0.3″ (approx 160 pages 80gsm / 20lb bond)
• Maximum set thickness – 4mm / 0.15″ (approx 40 sheets 80gsm / 20lb bond)
• Stapling – Auto-adjusting staple pitch according to sheet size, range 105-150mm
• Staples per cartridge – 5000

The PowerSquare Two-­Knife Trimmer (P2T) is a compact module that completes the booklet making process by trimming the top and bottom edges of the book. It provides a professional solution for full-­bleed printed work, especially important for colour printed applications.

Fully automated from the PowerSquare’s user interface, up to 40mm / 1.6″ can be trimmed from each end of the book, and the trim position can be offset to match the image position. All trimmings are transported outside the machine to a high capacity external waste box, allowing continuous operation.
