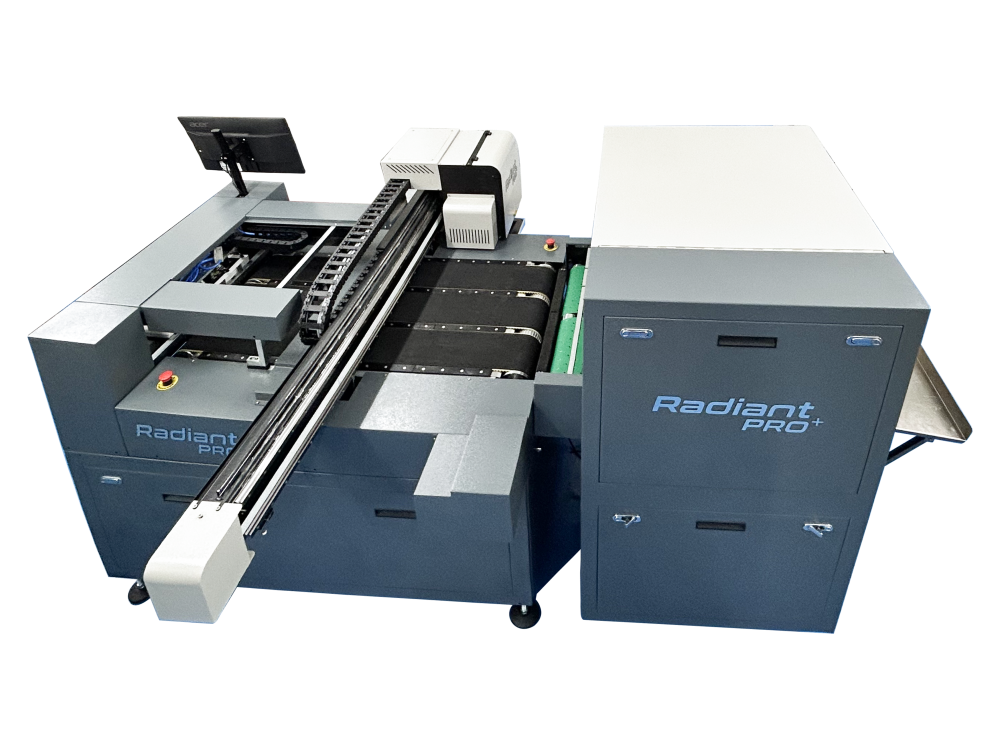

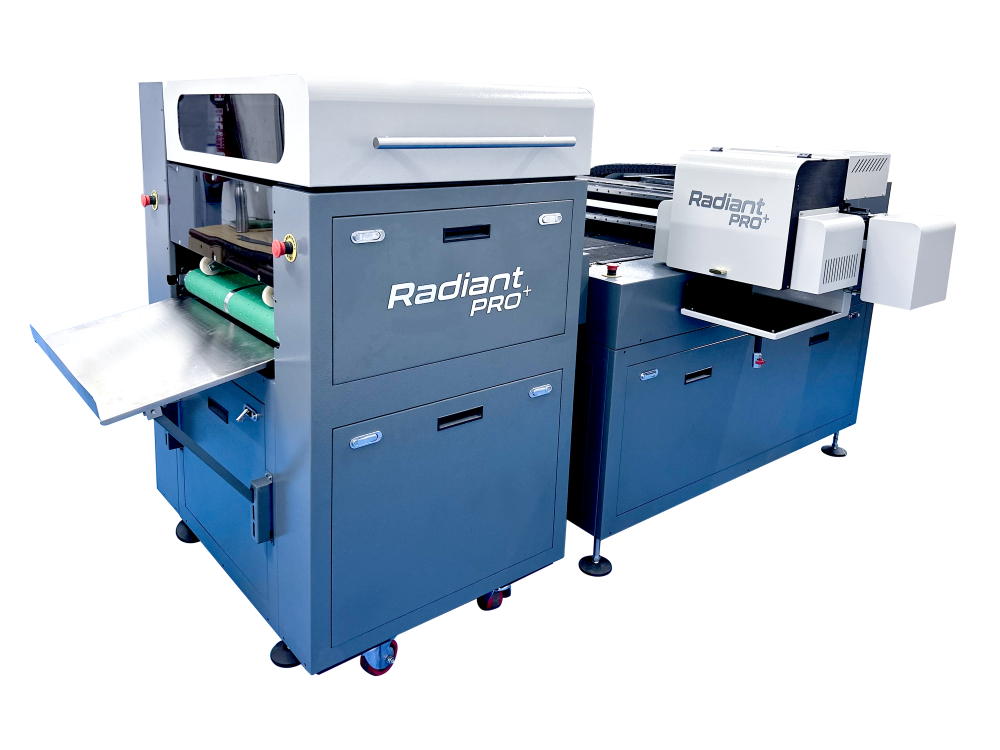

PixelGlow Radiant Pro Plus

Fully Automatic Digital Enhancement Press

AI-Driven Precision – Advanced AI Scanner ensures perfect registration and flawless accuracy on every sheet.
High-Speed Productivity – Prints up to 225 A3 sheets per hour, combining speed with consistent quality.
3D UV & Foil in One Pass – Create spot UV, metallic foil, and textured 3D effects in a single seamless process.
Expanded Media Compatibility – Supports coated, uncoated, textured, and specialty media for diverse applications.
Smart Feeder System – 600-sheet auto feeder enables uninterrupted, high-volume production with ease.

Categories: Digital Enhancement Press, PixelGlow

Description

The PixelGlow Radiant Pro Plus is the next-generation Digital UV and Foiling System from Monotech Systems Ltd., engineered to redefine on-demand print enhancement. Combining cutting-edge automation, AI-driven precision, and Made-in-India reliability, the Radiant Pro Plus brings world-class embellishment capabilities within every print house’s reach.

Designed for photo labs, commercial printers, packaging converters, and brand owners, this system transforms ordinary prints into extraordinary, high-value creations with stunning tactile textures, metallic foils, and raised UV effects — all at the touch of a button.

Why Choose PixelGlow Radiant Pro Plus?

Complete Digital Workflow

No plates, dies, or screens. Start embellishing instantly from digital files.

Superior ROI

Reduce outsourcing costs and increase margins with in-house embellishment.

Reliable Service & Support

Backed by Monotech’s strong nationwide service network.

Multi-Effect Capability

Combine UV, foil, and texture effects in one integrated process.

Compact, Plug-and-Play Design

Perfect for any digital or offset print setup.

Environmentally Conscious

Low waste, reduced energy usage, and eco-friendly operation.

Applications

Photo Labs & Albums

Backed by Monotech’s strong nationwide service network.

Photo Labs & Albums

Backed by Monotech’s strong nationwide service network.

Commercial Printing

Elevate brochures, certificates, invitations, and promotional prints with foil and UV accents.

Commercial Printing

Elevate brochures, certificates, invitations, and promotional prints with foil and UV accents.

Packaging & Labels

Create high-impact packaging for cosmetics, FMCG, and luxury brands with striking embellishments.

Packaging & Labels

Create high-impact packaging for cosmetics, FMCG, and luxury brands with striking embellishments.

Corporate Printing

Give business cards, folders, and annual reports a sophisticated, premium finish.

Corporate Printing

Give business cards, folders, and annual reports a sophisticated, premium finish.

Short-Run and Custom Jobs

Enable personalization and on-demand embellishment for limited editions and niche markets.

Short-Run and Custom Jobs

Enable personalization and on-demand embellishment for limited editions and niche markets.

SPECIFICATIONS

Digital Enhancement System
Printing technology	– Radiant Pro+ inkjet engine technology. – Drop-on-Demand (DoD) technology. – Piezoelectric print heads, developed and manufactured by Ricoh Gen 5. – Digital Embellishment UV Printing. – Number of Print Heads: 06
Coating thickness	–Depending on your file, the inks used and the type of surface of your sheet, the coating Thickness can vary. – Velvet Laminated coating: up to 40 microns.
Production speed	– Up to 225 A3 sheets per hour.
Registration Mark	Uses the Artificial Intelligence Smart Scanner® for full real-time automated sheet-to-sheet Registration process: *44** Square marks required,
Registration tolerance	– ± 300 μm Sheet to sheet
Printing Formats	Min: 11.3″ x 16.3″ (28.8 x 41.2 cm), Max.: 14″ x 20″ (50.8 x 35.5 cm) Max. Printable width: 20″ (50.8 cm). Resolutions:600*600 DPI
Substrate thickness	Paper GSM Range:170 – 600 GSM
Substrates	— Prints directly on laminated sheets. Toner
Ink tank capacity	2 liters main tank capacity
High-capacity automatic paper feeder	– It has auto feeding technology with vacuum cylinder to pick the paper. – Separate options are given for A3 mode and B3 mode to pick the paper. – It has a feeding capacity of 600 sheets (200 GSM) for A3 plus size. – No paper sensor is available to detect the paper.
Paper path	– 100% flat paper path. – Vacuum conveyor bed system.

UV LED	– Low Power UV LED
Daily Maintenance	– Daily maintenance was completed in less than 05 minutes.

Format options	– PDF / TIF File
Rip Software	– X Color


Digital Foiling System
Paper Formats		Min: A3 11.7″ x 16.5″ (29.7x 42 cm), Max.: B3 20.4″ x 14″ (51 x 35.5 cm)
Embellishment thickness		40 μm*
Substrate types		– Surfaces with lamination.

Number of areas per sheet Foil Saving Feature		– Up to 3 stamp areas per SRA3 sheet – Foil saving enabled
Foil specifications		– Standard foil core lock is provided. – Foil length: Max. 23 inch (do not exceed). – Foil width (roll width): Min. & Max. 320 mm.

Paper exit tray		Tray able to handle a paper pile. – It has a foldable stacker to collect the paper.
Interface		Inline foil with foil saving feature.

Electrical requirements		Single Phase MCB 32 Amp, Neutral to Phase 220v with 3 core 2.5 sq mm power cable. Earth less than 2V
Total Power consumption		– For India only: 4.2 kwh(peak time),4 kwh(print mode)
Total Printer Assembly Length		122″ x 88″x 61″(3099 x 2235 x 1550 mm)
