Morgana DigiFold Ultra

Morgana DigiFold Ultra – Creasing and folding with full bleed trim capabilities. Slit, cut, crease, perforate and fold applications in one pass

The Morgana DigiFold Ultra is a creasing/folding machine with full bleed trim capabilities. It can slit, cut, crease, perforate and fold applications in one pass and is robustly designed to complement mid to high volume digital and offset production presses.

The DigiFold Ultra builds on top of the capabilities of the DigiFold Pro XL by adding in slitting and cutting functionality for full-bleed trim applications. It can produce everything that the DigiFold Pro XL can, but now with full bleed trim, in a single pass. High quality applications such as full-bleed 6 or 8-panel brochures become an easy task even for A4 (8.5”x11”) landscape finished formats.

Key Features

Full bleed trimming
Slit, cut, crease, perforate, and fold applications in one pass
Automated full bleed trimming of applications on sheets up to 1300mm long
Creases and folds up to 6,000 A4 / 8.5” x 11” per hour
User-friendly UI and highly automated
Full cross perforation available, plus up to five inline perforation/scoring wheels
Up to 30 creases per sheet (static crease)
Equipped with both a belt-stacker for folded sheets and a delivery tray for crease only jobs

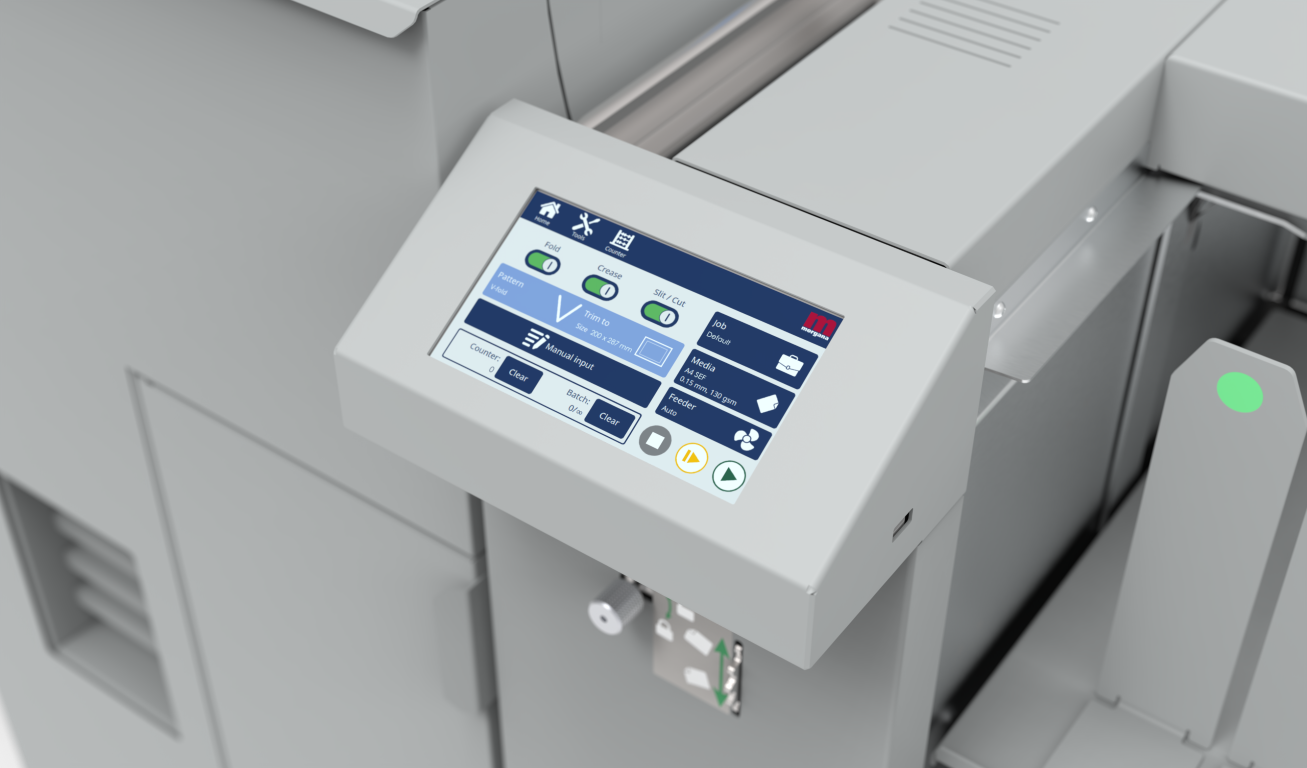

Intuitive user interface
Open design feeder for loading ease and efficiency
Can be paired with the BST4000-1 for more production heavy environments

Long sheet trimming capability on the Morgana DigiFold Ultra

The Ultra’s long sheet trimming capability is a strategic complement to the latest printing presses which now offer duplex printing on longer sheets. Instead of purchasing a standard guillotine that can only process up to 560mm long sheets, the Ultra allows customers to fully leverage the capabilities of their new presses, trimming applications up to 1300mm long.

The DigiFold Ultra comes standard with dual folding knives, one DynaCreaser, two slitting knives and one cross-cut knife. The Ultra maintains the high productivity seen on the previous generation Pro XL platforms. There are also attachments such as the Trim Waste Conveyor Belt and BST-4000 Belt Stacker which make the Ultra suited for longer unattended production runs.

After a sheet is fed, two automatically positioned slitters trim off the top and bottom of the sheet and a cross-cut knife is available to cut the lead and trail edges of the sheet. The top and bottom slitters can trim from 5 to 40mm off the top and bottom edges of the sheet and the Cross-Cut Knife can trim from 5 to 20mm on lead and trail edges (unlimited trim on lead edge with multiple cuts).

DigiFold-Pro-XL-2CR_low-UI-DOF.229-1024x640

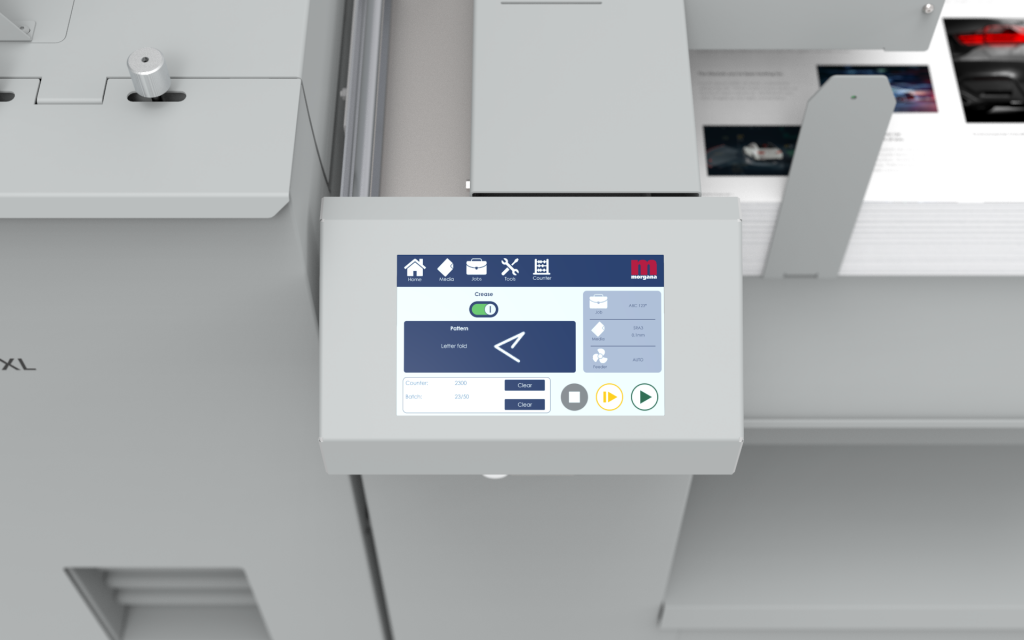

Intuitive user interface

An intuitive colour touch screen with a run screen that gives you a complete overview of the job in progress. Basic adjustments can be made “on the run” and access to crease and fold patterns is simple. The user interface is available in multiple languages. With new ‘Auto-settings’, this truly unique function takes care of the roller gap settings, speed adjustment and fan settings, removing time-consuming adjustments of various settings.

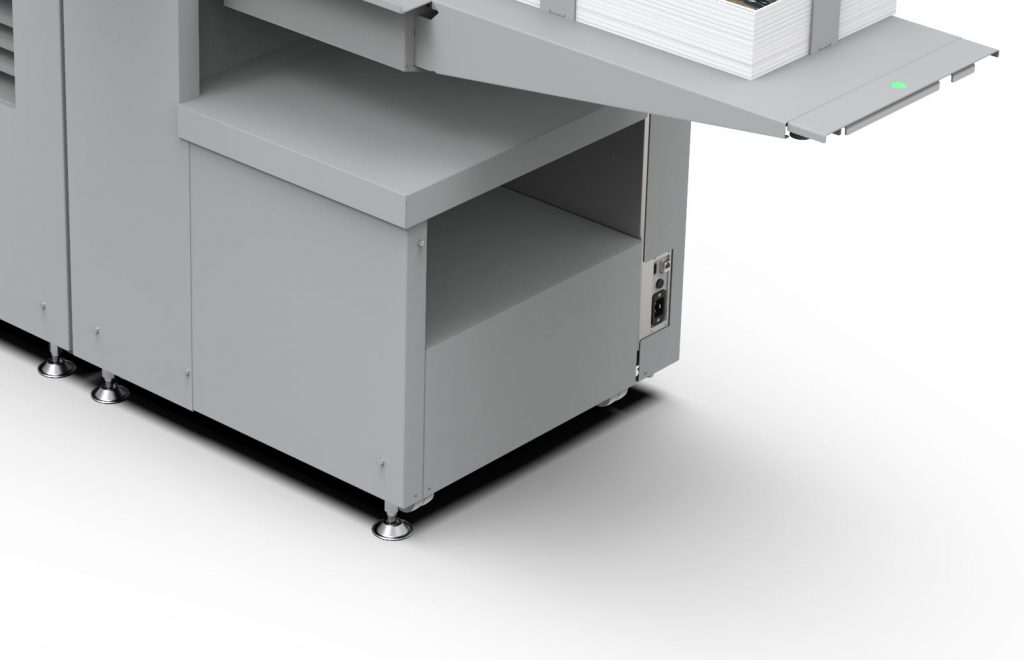

Superb paper handling

The Morgana DigiFold Ultra’s two-in-one stacker combination lets you switch between folded and non-folded jobs from the user interface, no need to reconfigure the machine. Full Bleed Trimmed, non-folded jobs will come out on the lower stacker for non-folded sheets.

The optional table extension kit allows for applications made from extra-long sheets all the way up to 1300mm/51.2” in length. This will allow for processing of applications such as full-bleed trimmed extra-long banners and 8-panel A4 brochures.

DigiFold-Pro-XL-Right-angle-high-storage-1024x660

Specifications

Morgana DigiFold Ultra

Maximum number of creases / sheets

30 (with optional static creasing tool)

Maximum productivity

6000 Sheets per hour, A4/half fold, one crease only 7,500. DynaCrease standard, Static crease optional

Dual folding knifes

Yes

Number of crease tools

Up to two. One DynaCrease and one static crease optional

Maximum load capacity

200mm

Minimum distance between creases

0.1mm with static crease (2.5mm with DynaCrease)

Media range

0.1 – 0.4mm (approx 80 – 400gsm)

Sheet size: max

385 x 700mm (385 x 1300mm with table extension)

Sheet size: min

93 x 210mm

Inline perf

Standard

Inline scoring

Yes, up to 5 wheels optional

Inline slitting

Yes, up to 5 wheels optional

Cross perf

Optional (comes with static crease kit)

Feed technology

Vacuum belt top fed with Advanced Process Control (APC)
