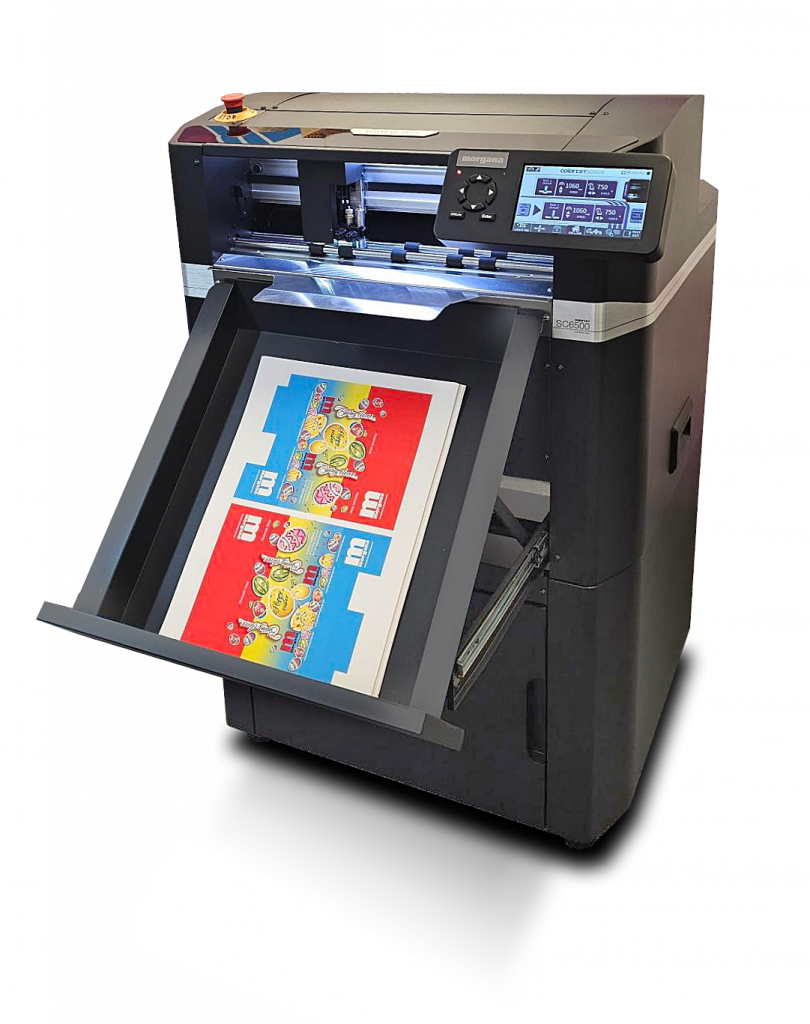

Morgana ColorCut SC6500

Morgana ColorCut SC6500 – High-speed cutting and creasing in a ‘No Wires’ working environment

Morgana ColorCut SC6500 – Automated sheet fed digital die-cutter for sheet card and labels with creasing

Building on the successful SC6000 series, the new SC6500 offers a new ‘No Wires’ working environment.

The SC6500 is a compact dual tool digital cutter offering a highly advanced and reliable high capacity (1,000 sheets) auto-sheet feeder to cut and crease light sheet card (up to 350micron), or labels, to any shape without any set up costs.

With its unique and reliable vacuum belt feeder, the SC6500 can be left to cut unattended, while the camera registration system automatically retrieves cut files by reading the QR codes on each sheet.

The ‘No Wires’ working environment allows users to operate the cutter without being connected to a PC or to learn a new software program. This especially suits the production and manufacturing environments, where a fast turn around time is essential.

Complete unattended cutting production

Targeted for busy print departments, seeking an affordable, high-capacity device for complete unattended cutting production, the SC6500 combines ultra-reliable feeding with an instant job retrieval system and flawless high-speed cutting and creasing. This compact free-standing device is conveniently mobile and will be easily accommodated in any print shop.

Market leading features

Digitally cut-through any shape sheet card item – with SmartTag retention – on up to 350 micron media, or kiss-cut sheet labels – all at up to 1060mm/sec
Digital process means no more costly dies or waiting time
Auto feeder stacks up to 1000 sheets. Up to 340mm x 710mm and custom sizes – with self-centering function and air bladelite separation
Extendable paper tray
Integral media storage area
ColorCut Pro – Production Studio software included
* QR codes and SmartMarks are generated as part of the included ColorCut Pro software plugin which integrates with vector artwork created in Adobe® Illustrator® and CorelDRAW®
QR* code/Job Library retrieves associated cut files – even for mixed job batch sessions or rotated sheets SmartMark registration delivers incredible accuracy – enabled via included ColorCut Pro software

Complete standalone operation – even with a stack of mixed jobs

8th generation Vision3 CCD camera reads and instantly retrieves cut files for every sheet on the fly! Accepts a mixed stack of jobs, cutting one after the other in a seamless and uninterrupted flow

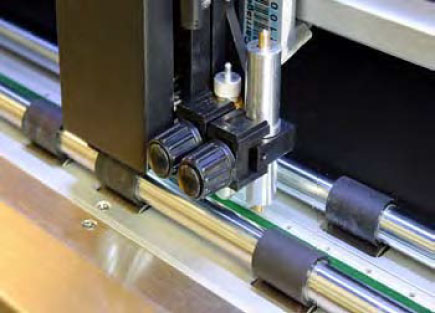

Dual ‘Grip and Drive’ feed system holds media during cutting on both sides of the cutting head, enabling it to cut closer to media edges
Revolutionary cutting strip, based on the superior cutting mats used in Intec flatbeds, delivers an optimal surface for both cut-through, creasing and kiss-cut
SmartTags are left in the cut lines to retain the item in the sheet – leaving a tidy and manageable stack of finished complete sheets in the catch tray
High-capacity auto feeder works in conjunction with air blade separation and automated jog function, to present every sheet perfectly for the cutter, every time
New HELD mode allows running ‘without wires’ or external connections. Using the new HELD mode, jobs can be driven directly on the machine itself, without connection to a computer.

High-capacity and ultra-reliable feeding

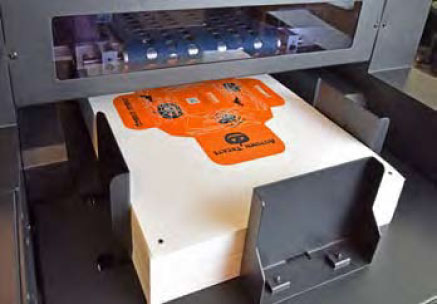

The SC6500 has been designed to provide unattended operation with particular attention paid to the feeding system to ensure class-leading performance for card, vinyl labels or even tricky laminated sheets. The SC6500’s auto feeder accepts up to 1,000 sheets, which automatically raises and lowers as required. To prevent sheets curling, as a result of a constant air flow to the sides, the SC6500’s uses an automatic air blade that fires a blast of air momentarily into the front of the stack just as the advanced vacuum feed belt lowers to collect the top sheet using pneumatic suction. To further provide a reliable feed, the vacuum feed belt lifts the media carrying any sheets not pre-separated by the air blade past a pair of dexterous separation fingers which dislodges them. Finally before advancing the sheet into the cutting engine, the vacuum feed belt ‘jogs’ briefly against the rear paper stop, creating a natural curve that helps ensure even difficult media feeds faultlessly.

Dual tool power – digital accuracy

The digital cutting head can apply up to 760gf, individually for both the cutting and creasing tools. Their actions are controlled via the included ColorCut Pro software. In common with the entire ColorCut family, the SC6500 can be set to apply exact amounts of pressure and speed, along with total control over the application of cut, crease and perforation of the vector artwork lines.

Ergonomic, compact and mobile

The space-saving media catch tray slides away when not in use and the manoeuvrable stand ensures it is easily accommodated into any environment. The 7 inch immersive touch screen control panel is housed within an articulated module which can pivot to suit the angle desired by the operator.

Morgana-ColorCut-Pro-Server-Station-148x300

Easy to use automatic job retrieval

When creating jobs, ColorCut Pro applies an auto assigned (editable) QR code* to each design, whilst auto-saving the cutting file to the ColorCut Pro Job Library.

Jobs with QR codes can be cut at a later date by any operator – no need to search for which file to cut – no specific computer application skills required! The SC6500 checks the QR code on each sheet, retrieves the associated cut file and proceeds to cut and crease as required – even if the sheet is presented at 180°. Choose to cut a single sheet or even thousands on an unattended run.

The Vision3 CCD camera has an 8th generation sensor with enhanced sensitivity to read even white QR codes and SmartMarks, when applied on dark media.

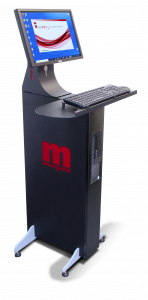

Optional ColorCut Pro Server Station

The ColorCut software seriously enhances productivity. Supplied complete with pre-installed Windows© PC and ColorCut Pro software suite, with a flat screen monitor, mouse and keyboard. Also includes software user licence for 2 additional seats.

ColorCut Label Media

A selection of premium label media for optimal performance on our ColorCut Die Cutters*.

Market leading features

Digital label media to suit every application: pharmaceutical, beverage, personal care, postal, automotive, logistics and more
Wide choice of paper and polyester stocks
Standard sheet size SRA3 (320mm x 450mm)
Designed to print smoothly. Dedicated adhesives withstand heat of laser printing ensuring sheet edges remain clean
Optimal lay-flat when feeding through printer
Designed for dry toner (laser) printers for premium print results
Anti-static treatment on polyester media
100 sheet packs for efficient and safe media storage

*ColorCut Label Media is currently only available in UK & Europe

Specifications

ColorCut SC6500

Minimum Media Size

180 (w) x 279mm (l) / 7.08″ (w) x 10.98″ (l)

Maximum Media Size

340 (w) x 710mm (l) / 13.38″ (w) x 27.95″ (l)

Maximum Working Area (dependent on media)

330 x 700mm / 12.99″ x 27.55″

Width

770mm (820mm inc. screen) / 30.3″ (32.3″ inc. screen)

Depth

850mm / 33.5″

Height

1230mm / 48.4″

Weight

115kgs / 254lb

Max Speed

1060mm per second / 41.7″ per second

Power Supply

AC 110-220V 50/60Hz, 0.5A

Connectivity

USB (1 connection to PC is required)

Data Buffer

External PC

Feeder Capacity

85mm / 3.34″ stacker height (Up to 1,000 sheets for auto-sheet feed, based on 80gsm / 21lb bond media)

Tooling

Twin head (1 x cutter 1 x creaser)
