Morgana ColorCut FB9000

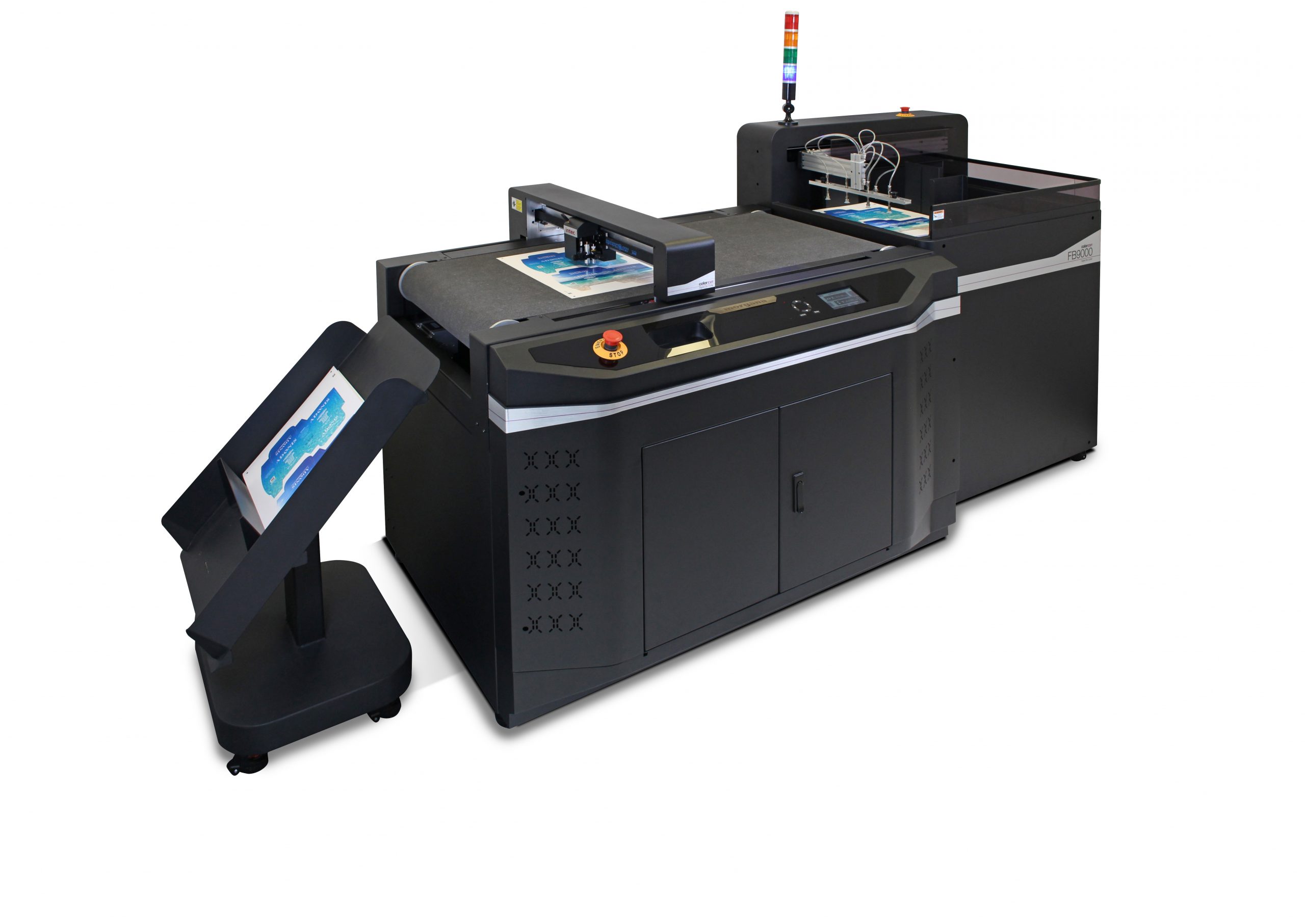

Morgana ColorCut FB9000 – Creative digital print finishing for production and prototype packaging.

The Morgana ColourCut FB9000 is an advanced, fully automated digital die cutter delivers lightning speed performance, unparalleled media control and highly sophisticated, but user-friendly production functionality. This premium build system has a high capacity rapid auto feeder, paired with a large format continuous belt cutting table and media collection tray, which together offer synchronised auto-feed/load and eject for fully unattended operation and exceptional productivity. Tactile controls and immersive touch screen driven software provide an intuitive user experience ensuring you operate the Morgana ColorCut FB9000 PRO with the simplest daily operation and virtually no learning curve.



SEND AN ENQUIRY
Categories: , , ,
Description

Key Features

  • Easy set-up and use. No need for dedicated operators/previous knowledge or specialised expertise. Unbox, connect and align feeder to cutter, plug in your PC via ethernet or USB and you’re ready to go!
  • Cutter. The FB9000PRO’s dual tool head contains the latest Vision3 high resolution CCD camera, which reads a printed QR code to automatically retrieve the associated cutting file from the system and eliminating wasted time searching for jobs. Scanning the corner page SmartMarks also ensures precision registration of every sheet with its digital cut file.

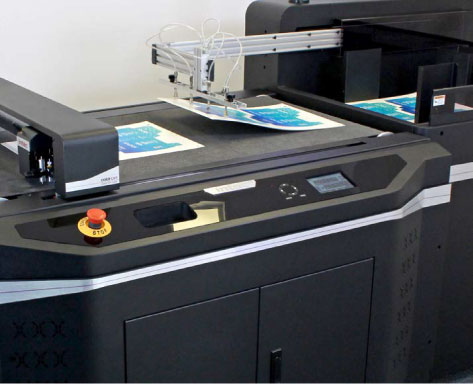

  • Feeder. Users can stack up to 2,000 sheets of printed media, even mixed batches for fully unattended operation, thanks to the QR code job identification. Each sheet is then automatically loaded on to the cutting belt using a highly effective pneumatic feed system.

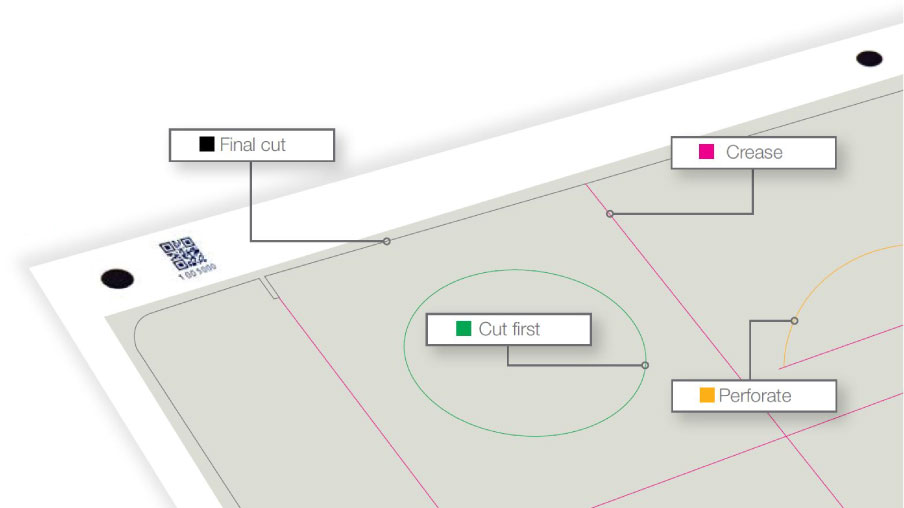

  • Software. Intec’s acclaimed ColorCut Pro software comes as standard. Features include: Remote Job Library, *SmartColors which allow different tasks and speed modes to be applied to different parts of the cut file and QR code reading which also allows the system to faultlessly identify and cut mixed jobs in the same session.

 Morgana FB9000 for digital cutting and creasing

The FB9000PRO cutters use advanced digital contour cutting technology to follow artwork lines drawn in Adobe® Illustrator® or CorelDRAW® enabling you to cut and crease absolutely any shape, on demand, with no setup costs and no new software to learn.

Versatile media handling.

Using the Auto Sheet Feeder, for unattended operation, the maximum media size is 480mm x 720mm. However, larger sheets can be cut in manual mode up to 550mm x 850mm. Designed to feed sheets in both portrait and landscape orientation, the system is equipped with an adjustable pick up head for wider sheets and larger media formats.

Dual tool head.

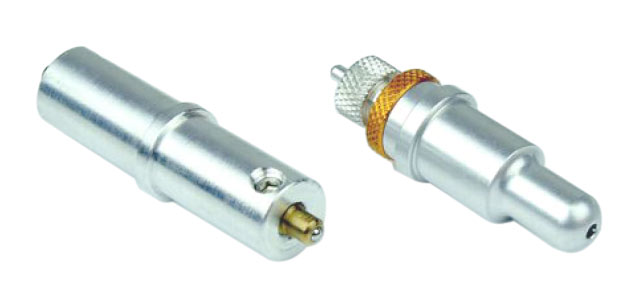

The separate cutting and creasing tools operate independently of each other, reducing operation time, improving productivity and providing the ability to specify different speed modes for ‘blended’ or multi speed cut and crease for accurate fast throughput. The cutting tool is supplied with a range of blades enabling a wide range of media to be cut from labels up to 1,000 micron card stock. The creasing tool is double-ended, offering a choice of wide or narrow crease with an option to assign multi-creases within the ColorCut Pro software, to aid the creasing of difficult substrates.

ColorCut Label Media

Market leading features

  • Digital label media to suit every application: pharmaceutical, beverage, personal care, postal, automotive, logistics and more
  • Wide choice of paper and polyester stocks
  • Standard sheet size SRA3 (320mm x 450mm)
  • Designed to print smoothly. Dedicated adhesives withstand heat of laser printing ensuring sheet edges remain clean
  • Optimal lay-flat when feeding through printer
  • Designed for dry toner (laser) printers for premium print results
  • Anti-static treatment on polyester media
  • 100 sheet packs for efficient and safe media storage
Specifications

Specifications

FB9000

Working Area (manual placement)
550mm x 850mm
Working Area (feeder)
480mm x 720mm
Width
2850mm
Depth
1095mm
Height
1035mm
Weight
406.5kg
Max Speed
1,200mm/s
Data Buffer
PC / Mac
Feeder Capacity
25kg / 217.42mm
Tooling
Twin head (1 x cutter 1 x creaser)

Power Supply

Cutter
220 – 240V / 6.8A / 750W
Vacuum pump
220 – 240V / 4.5A / 750W
Compressor
220 – 240V / 3.6A / 780W
