Junior DT-M Folder

• Paper forms from A6 up to A3
• 7 fold types: single, Z-, wrap, double parallel, door, engineering and cross fold
• Variable speed (3 levels): Max. speed 14.400 sheets/ h
• 2 Fold plates with fold type quick and fine adjustment
• Fold plates with self explaining fold type scale
• Adjustable pressure to the feeded paper
• Paper weights: 50 – 160 g/ m2
• Fine adjustment of the fold parallelity
• “Paper-out” and jam control
• Double sheet control
• Display with 4 digit job counter and status information
• Adjustable conveyor stacker

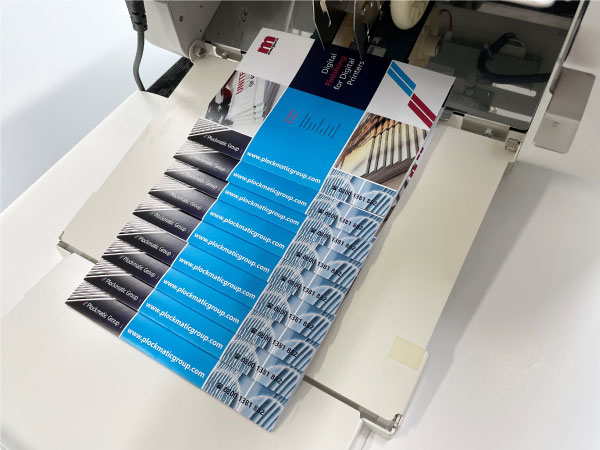

An integrated conveyor stacker guarantees accurate stacking of up to 300 folded sheets. This conveyor stacker is adjustable according to different paper sizes and fold types and handles the paper with a maximum speed of 14.400 sheets/h. The capacity of the automatic feeding station is up to 500 sheets. A job counter indicates the number of processed sheets. Equipped with a digital pre-counter (count-down-function) with interval mode, this allows the machine to have short break after a fixed number of sheets are folded, this enables the operator to remove a fixed number of documents without stopping the machine.
