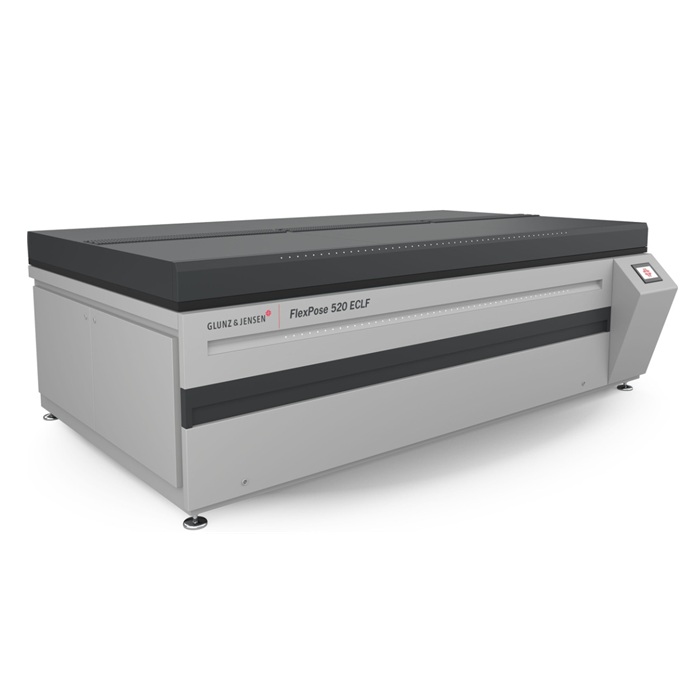

Flex Pose – 360 ECLF/ 360 ECDLF/ 420 ECDLF/ 520 ECLF
Our family of exposure systems is the most successful equipment on the market. Well-proven technology, in combination with innovative ideas provide high UV output characteristics and consistent plate quality.
We manufacture exposure units in three sizes to accomodate all flexographic plates sizes. All of our exposure units feature a cooled bed and a pneumatic lid that automatically opens and closes. Lamp cooling, PLC control and light integration are also included on all models.In addition, our exposure units are available in a number of variations which can include drawers for additional storage space, an integrated dryer,
and/or a light finisher.
At Glunz & Jensen, we work tirelessly to develop fully automated, integrated systemes to improve process optimisation. Our goal is to help you process flexo plates faster and more accurately, while lowering operating costs and the risk of human error.
Fiber optic indicators provide quick visual status of UV lamp operation.
Industrial grade electrical controls, with standardized components for high reliability
Fast and easy access for maintenance operations. Main components are conveniently located in drawers and inside the top lid.
Easily accessible drawers for drying and light finishing processes.
Easily accessible drawers for drying and light finishing processes.
Specifications
| Model | 360 ECLF | 360 ECDLF | 420 ECDLF | 520 ECLF |
|---|---|---|---|---|
| Performance | ||||
| Plate size | 920 x 1200 mm (36 x 47″) | 920 x 1200 mm (36 x 47″) | 1070 x 1530 mm (42 x 60″) | 1320 x 2032 mm (52 x 80″) |
| MEX Tubes | 24 x TLR80 10R | 30 x TL100 10R | 22 x TL60 10R | 30 x TL80 10R |
| UVA/UVC Tubes | 20 x TL60 10R 19 x TUV-75W |
n/a | 22 x TL60 10R 21 x TUV-75W |
29 x TUV60-95W |
| Consumption | ||||
| Power supply | 3W+N+PE 400 VAC 50/60 Hz 3W+PE 230 VAC 50/60 Hz |
3W+N+PE 400 VAC 50/60 Hz 3W+PE 230 VAC 50/60 Hz |
3W+N+PE 400 VAC 50/60 Hz 3W+PE 230 VAC 50/60 Hz |
3W+N+PE 400 VAC 50/60 Hz 3W+PE 230 VAC 50/60 Hz |
| Air extraction volume (light finisher) | 800 m³/hr | 800 m³/hr | 800 m³/hr | 3000 m³/hr |
| Exhaust connection (light finisher) | 1 x 140 mm | 1 x 140 mm | 1 x 140 mm | 2 x 160 mm |
| Air extraction volume (dryer) | n/a | 100 m³/hr | 100 m³/hr | n/a |
| Exhaust connection (dryer) | n/a | 1 x 60 mm | 1 x 60 mm | n/a |
| Compressed air supply (min) | 7 bar (100 psi) | 7 bar (100 psi) | 7 bar (100 psi) | 7 bar (100 psi) |
| General | ||||
| Dimensions (WxLxH) | 1940 x 1840 x 1060 mm (76.3 x 72.4 x 41.7″) |
1940 x 1840 x 1060 mm (76.3 x 72.4 x 41.7″) |
2150 x 2100 x 1100 mm (84.6 x 82.7 x 43.3″) |
3440 x 2180 x 1150 mm (135.4 x 85.5 x 45.3″) |
| Weight | 650 kg (1433 lbs) | 720 kg (1587 lbs) | 1050 kg (2315 lbs) | 1250 kg (2756 lbs) |
| Approvals | Complies with CE standards and RoHS directive. | |||
