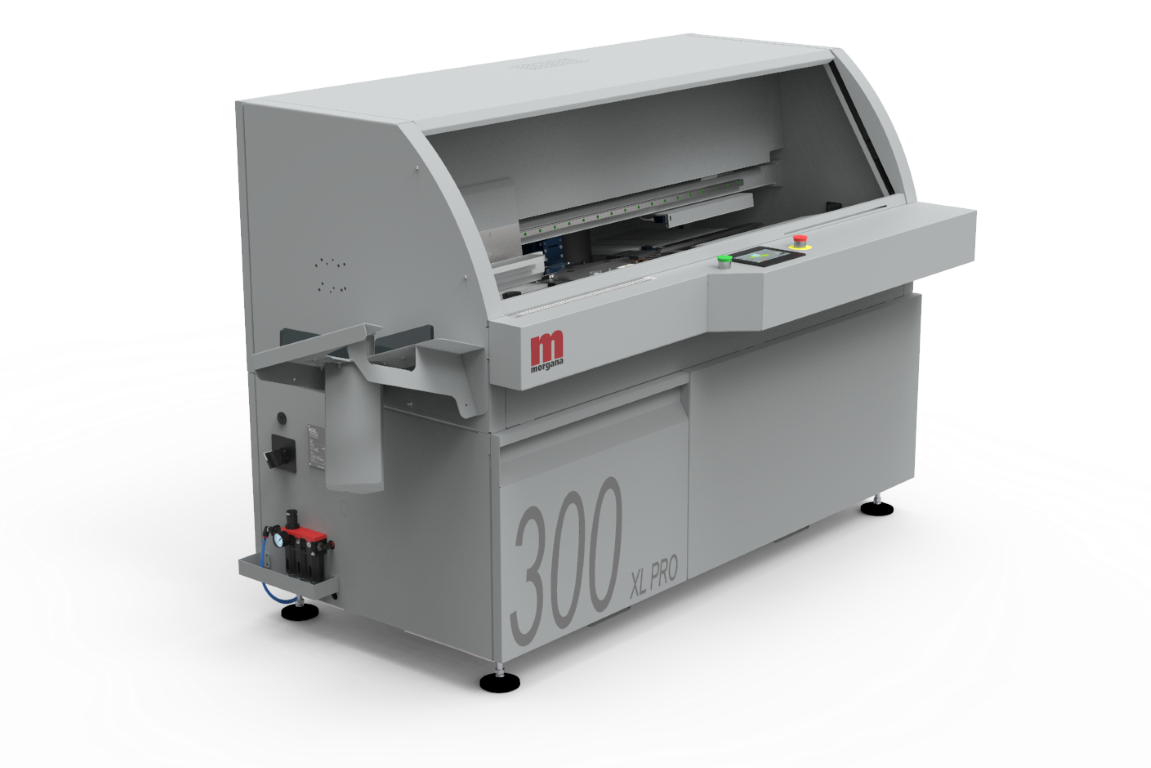

DigiBook 300XL Pro PUR Binder

DigiBook 300XL Pro PUR Binder – Open the door to high value, large format book production.

The DigiBook 300XL Pro PUR Perfect binding machine opens the door to high value, large format book production. Now you can offer your customers books with a finished size of up to 450mm x 450mm / 18.71″ x 17.71″! Applications such as deluxe catalogs, photobooks and special editions can all be produced more economically and easily than ever. And Morgana’s patented PUR technology ensures a strong, permanent bind across the widest range of media types and sizes.

Like all members of the DigiBook series, the 300XL uses our innovative PUR adhesive application and cleaning system. The nozzle system automatically applies the right amount of PUR adhesive for each and every book.

The unique milling and notching tools prepare the spine to ensure optimal interaction with the adhesive. Additionally, the DigiBook 300XL Pro has a completely retractable milling system, allowing for the production of sewn book sections.

Print applications are more demanding than ever. Plastic, film, coated and uncoated paper – light and heavy can now be bound permanently, simply and easily.

Description

Key Product Features

  • Produce books up to A3 / 12″ x 18″  landscape
  • Up to 300 books per hour
  • Touch screen operation complete with automatic format change.
  • Pneumatic opening and closing of clamp
  • Binding length (spine) from 100mm / 3.9″ up to 450mm / 17.7″
  • Spine thickness from 2mm / 0.07″ to 50 mm / 1.96″
  • Spine preparation by sophisticated milling device
  • Automatic cleaning and sealing of the glue head
  • Retractable milling
  • Patented hermetically sealed PUR application system for spine and side gluing with automatic glue cut-off
  • Unique angled work surface
  • Automatic book block measuring and set-up

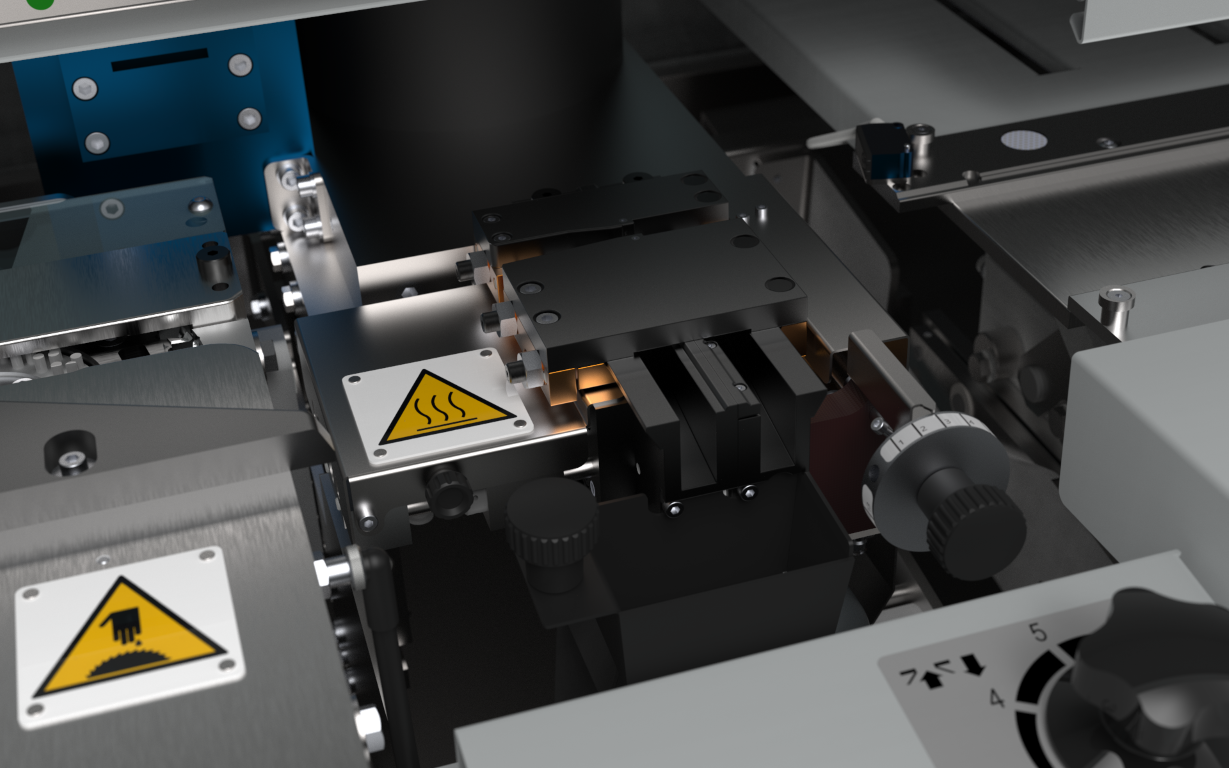

Innovative application system

The DigiBook 300XL Pro PUR Perfect Binding Machine uses a new and innovative application system which is covered by no less than seven international patents. The application is direct and hermetically sealed, without odour or toxic fume emissions, and does not require extraction fans, thus allowing the use of polyurethane glue in 2kg cartridges in a simple and waste free manner.

Specifications

Specifications

Technical Specifications

Speed
300 books per hour
Touch screen
Yes
Spine length: Max / Min
450mm / 17.7″ – 100mm / 3.9″
Book height: Max / Min
450mm/ 17.7″ – 120mm / 4.72″
Book/spine thickness
2mm / 0.07″ – 50mm / 1.96″
Cover dimension maximum
1000mm / 39.3″ x 450mm / 17.7″
Cover dimension minimum
240mm / 9.4″ x 100mm / 3.9″
Maximum cover weight
400gsm / 160lbs

Technical Specifications

Dimensions
L 2470mm / 97.2″ x W 1270mm / 50″ x H 1660mm / 65.4″
Electrical Requirements
20amp single phase
Product Weight
600kgs / 1323lb
