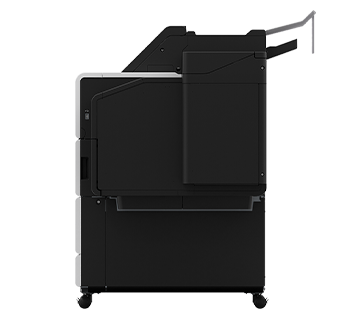

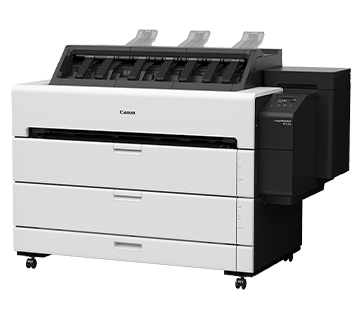

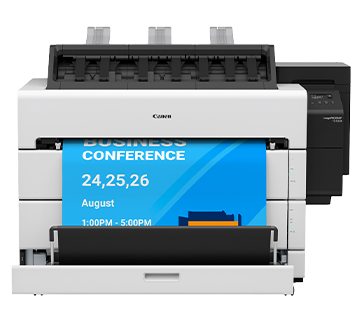

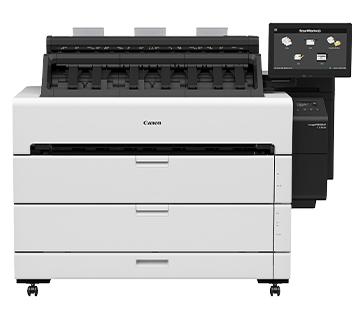

Canon imagePROGRAF TZ – 5320

Surpass Every Expectation with High Print Speed

A 36″ printer with high-speed continuous printing and fast first print out time. Perfect for Production CAD market, the TZ-5320 delivers pin-sharp lines and text and further enhances productivity with innovative media handling capabilities and workflow solutions.

For Production CAD market
Console design with standard dual roll system
Impressive print speed and media handling system
500 GB encrypted hard disk drive
Robust security, extensive suite of software and solutions

Categories: Inkjet Printing Systems, Canon

Description

Features

Fast Print Speed

Twin carriage motors ensure maximum productivity is achieved on the new TZ series. With print data processing, pre-print operation and print spooling optimised, the TZ series realised fast throughput during continuous printing (up to 4 pages per minute on A1 plain papers).

Productivity at Its Peak

Dual-roll feeding unit enables users to load up to two rolls of media, reducing the frequency of switching between different media types or sizes in high volume printing. Optional stacker supports neat output collations, while the sub ink tank system allows empty ink tanks to be replaced while the printer continues to print, maximising productivity.

Smart Roll Paper Set

All models are equipped with an advanced Smart Roll Paper Set function that automatically detects paper feed and type and estimates the remaining paper quantity. The speed-up of the paper feeding process reduces the time it takes to load the roll paper.

Technologies

LUCIA TD Ink

5-colour LUCIA TD pigment ink is formulated to produce sharp text, and accurate lines with excellent water resistance, even on plain paper. With new magenta pigment ink to enhance technical drawings and graphics, poster quality can be improved as a deeper and more vivid output will be produced.

FINE Print head

Equipped with micron-sized nozzles, the fully integrated print head provides superb uniformity of ink density and colours, while multi-pass printing ensures highest print quality is maintained on every print.

L-COA PRO Image Processing Engine

L-COA PRO imaging processor is capable of processing massive image data, drives high printing speed while maintaining supreme print quality, enabling fast first print out time and continuous printing speed.

Workflow Solutions

The following workflow solutions are designed to help you get the most out of your printer.

Direct Print Plus

Job submission tool which supports batch printing of multiple file types, shortcut printing function and job presets, enabling efficient large format printing workflow.

PosterArtist

Design vibrant posters for your needs with minimal effort using the PosterArtist application.

Accounting Manager

Design vibrant posters for your needs with minimal effort using the PosterArtist application.

Direct Print Plus – Job submission tool which supports batch printing of multiple file types, shortcut printing function and job presets, enabling efficient large format printing workflow.
Accounting Manager – Track ink and media usage for cost calculation and reporting.
Media Configuration Tool – Easily manage, update and arrange media information in printer’s operation panel and printer driver.
Device Management Console – Effectively manages multiple printers, monitor activities such as error messages and printer information up to 50 printers.
Quick Utility Toolbox – Quick access to supporting utilities and settings. From printer information, speed dial and destination folder settings to scanning and cloud sharing.
Free Layout Plus – Enjoy nesting, tiling and duplex printing features.
Easy-PhotoPrint Editor – Edit, trim and rotate your images into unique layouts and designs, including posters, calendars, collages and more. Available on iOS, Android OS.
Apple AirPrint – Print PDF files wirelessly via mobile app for Apple iPad® and iPhone®.
Canon Print Service – Direct document and photo printing via mobile app from Android devices without the need to download any printer-specific applications.
Canon PRINT – Print PDF files wirelessly via mobile app for Android tablet and smartphone.
PRISMAproduce Tech – A powerful workflow application and a user-friendly way to create document sets of dozens of files and submit them easily to imagePROGRAF printers.

SPECIFICATIONS

Printer

Printer Type	5-Colour 36″ (914 mm)
Number of Nozzles	15,360 nozzles (MBK: 5,120 nozzles; BK, C, M, Y: 2,560 nozzles each）
Maximum Print Resolution	2,400 × 1,200 dpi
Nozzle Pitch	1,200 dpi (2 lines)
*Line Accuracy^1**	± 0.1% or less
Minimum Ink Droplet Size	5 pl
Ink Capacity	Sales Ink: 330 ml / 700 ml (MBK, BK, C, M, Y) Bundled Starter Ink: 330 ml (MBK) / 160 ml (BK, C, M, Y)
Ink Type	Pigment Ink
Printer Language	SG Raster (Swift Graphic Raster) HP-GL/2 HP RTL PDF (Ver. 1.7) JPEG (Ver. JFIF1.02)
Printing Solutions	Apple AirPrint, Direct Print Plus, CPP PRISMAproduce Tech, Easy-PhotoPrint Editor, Canon PRINT (Mobile), Canon Print Service (Mobile), Free Layout Plus, PosterArtist Wndows/Lite/Web
Management Solutions	Media Configuration Tool, Accounting Manager, Device Management Console, Quick Utility Box
Standard Interfaces (Built-in)	USB A Port: USB Memory (Direct Print)USB B Port (Series B, 4 pins): Hi-Speed USB Full Speed (12 Mbit/sec) High Speed (480 Mbit/sec) Bulk TransferGigabit Ethernet: IEEE 802.3 10base-T IEEE 802.3u 100base-TX IEEE 802.3ab 1000base-T SNMP, HTTP, FTP, TCP/IP (IPv4/IPv6) Wireless LAN: IEEE802.11b/g/n WPA-PSK (TKIP/AES) WPA2-PSK (TKIP/AES) WPA3-SAE (AES) WPA-EAP (AES)^2 WPA2-EAP (AES)^2 WPA3-EAP (AES)^*2
Memory	Standard: 128 GB Physical: 2 GB
Hard Disk	500 GB (Encrypted)

Print Speed^*3

Plain Paper
CAD Drawings, A0	26 sec [Fast (Custom Q5)] 1 min 6 sec [Standard]
Poster, A0	29 sec [Fast (Custom Q5)] 1 min 15 sec [Standard]
Heavyweight Coated Paper HG
Poster, A0	2 min 34 sec [Standard]
Glossy Photo Paper HG 170
Poster, A0	5 min 14 sec [Standard]

Media Handling

Media Feed and Output
Roll Paper	Two Roll, Front Load, Front Output / Top Output
Cut Sheet	Front Load, Front Output^*4
Media Width (Roll / Cut Sheet)	203.2 ～ 917 mm
Min. Printable Length
Roll Paper	Front Output: 203.2 mm, Top Output: 205 mm
Cut Sheet	203.2 mm
Max. Printable Length
Roll Paper	18 m^*5
Cut Sheet	610 mm
Maximum Outer Roll Diameter	175 mm or less
Borderless Printing Width (Roll paper only)	203.2 ～ 917 mm
Margins (Recommended Area)
Roll Paper	Top: 20 mm, Bottom: 3 mm, Side: 3 mm
Cut Sheet (Apple AirPrint)	Top: 20 mm, Bottom: 31 mm, Side: 3 mm
Cut Sheet (Others)	Top: 20 mm, Bottom: 20 mm, Side: 3 mm
Margins (Printable Area)
Roll Paper	Top: 3 mm, Bottom: 3 mm, Side: 3 mm
Roll Paper (Borderless Print)	Top: 0 mm, Bottom: 0 mm, Side: 0 mm
Cut Sheet (Apple AirPrint)	Top: 3 mm, Bottom: 12.7 mm, Side: 3 mm
Cut Sheet (Others)	Top: 3 mm, Bottom: 20 mm, Side: 3 mm

Dimensions & Weight^*6

Dimensions (W x D x H)
Main Unit	1,548 x 762 x 1,126 mm (Basket Closed)
Main Unit + Paper Output Support + Top Output Guide	1,548 x 1,293 x 1,428 mm (Basket Open) 1,548 x 960 x 1,189 mm (Basket Closed)
Weight
Main Unit	205 kg
Main Unit + Paper Output Support + Top Output Guide	206 kg
Packaged Dimensions (W x D x H)
Main Unit + Paper Output Support + Top Output Guide + Pallet	1,704 x 946 x 1,373 mm
Packaged Weight
Main Unit with Basket + Paper Output Support + Top Output Guide + Pallet	277 kg

Power & Operating Requirements

Power Supply	AC 100 – 240 V, 50 – 60 Hz
Power Consumption
Printing^*7	Approx. 111 W
Sleep Mode^*7	Approx. 2.1 W
Power Off	Approx. 0.1 W
Operating Environment
Temperature	15 ～ 30 °C
Humidity	10 ～ 80 % RH (no dew condensation)
Acoustic Sound
Acoustic Power^*8	Operation: Approx. 70 dB
Acoustic Pressure^*8	Operation: Approx. 52 dB (A) Standby: 35 dB (A) or less

Accessories

2″/3″ Roll Holder (Optional)

RH2-34

Consumables

Print Head	PF-06
Maintenance Cartridge	MC-30
Ink Tank	Matte Black / Black / Cyan / Yellow: PFI-8340 (330 ml) / PFI-8740 (700 ml) Magenta: PFI-8341 (330 ml) / PFI-8741 (700 ml)

User adjustments is required.
Printing environment and media must match those used for the adjustments.
Paper required: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only.
Support IEEE802.1X (EAP-TLS/EAP-TTLS/PEAP).
Time taken to print one page, does not include time required for data processing, data transfer and pre-printing operations.
Manual feed using media locking lever.
Varies according to the OS and application.
Include roll holder set, exclude ink and print head.
Using wired LAN.
Measured using ISO 7779 standard by using 36 inch plain paper, standard mode and line drawing/text mode.
